KAESER Reciprocating compressor model CLASSIC 320/90 W
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Handicraft compressor with large compressed air reserve - 167 l/min, 10 bar, 90 l tank, 230V
The KAESER CLASSIC 320/90 W is designed for a reliable compressed air reserve with its 90-liter tank and 2.2 kW two-cylinder motor with large tank. It delivers 167 l/min effective volume flow at 10 bar and has a large compressed air reserve for uninterrupted work. The 1:1 direct drive ensures maximum energy efficiency with a 230 V AC connection.
Application areas
The large tank makes the CLASSIC 320/90 W the first choice for paint spraying, sanding, sandblasting, impact wrenches and blowing work. The compressed air reserve bridges load peaks and enables longer work phases without run-on time.
KAESER quality made in Germany
Like all KAESER CLASSIC compressors, the CLASSIC 320/90 W is manufactured at the Coburg plant. Corrosion-free stainless steel valves, cross-ground cylinders and high-performance fluid as standard ensure a long service life with low maintenance costs - the oil only needs to be changed after approx. 1,000 operating hours.
| Volume flow at 6 bar (l/min) | 167 |
| Suction volume flow (l/min) | 320 |
| Max. Overpressure (bar) | 10 |
| Rated power drive motor (kW) | 1,5 |
| Number of cylinders | 1 |
| Nominal synchronous speed (1/min) | 3000 |
| Volume of compressed air tank (litres) | 90 |
| Emission sound pressure level (dB(A)) | 77 |
| Sound power level (dB(A)) | 97 |
| Hose connection (mm) | 6 |
| Electrical supply | 230 V / 1 Ph / 50 Hz |
| Width (mm) | 1080 |
| Depth (mm) | 440 |
| Height (mm) | 850 |
| Weight (kg) | 53 |
| Volume flow at 6 bar (l/min) | 167 |
| Model range - piston compressors | CLASSIC |
| Design | mobile |
| Hose reel attached | NO |
Similar Products
| Product | Price | ||
|---|---|---|---|

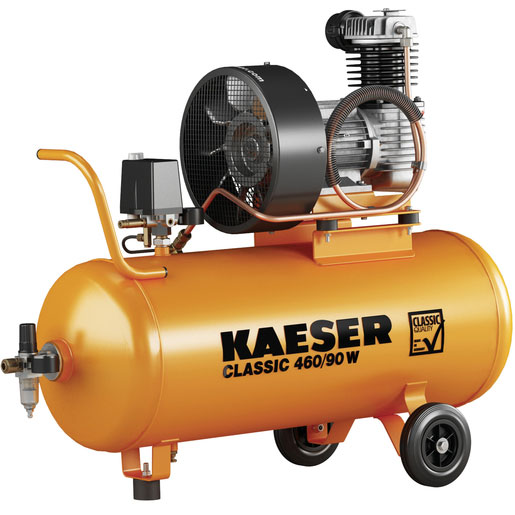

![[1.1721.1] KAESER Reciprocating compressor model CLASSIC 320/90 D](/web/image/product.template/103175/image_128/%5B1.1721.1%5D%20KAESER%20Reciprocating%20compressor%20model%20CLASSIC%20320-90%20D?unique=d4441e6)
|
