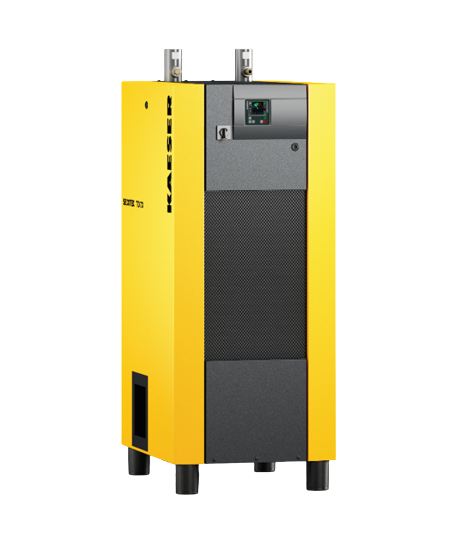

KAESER Energy-saving refrigeration dryer model TD 52
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
The new SECOTEC refrigeration dryer series TD in industrial quality complements the existing series from September 222. The new series is characterized by a space-saving and highly efficient SECOPACK LS latent heat storage unit and the SIGMA CONTROL SMART controller with comprehensive system monitoring and optimum network connection (TCP).
YOUR ADVANTAGES
- low energy costs
- high operational reliability
- stable pressure dew point
- long service life
- future-proof refrigerant
- high-quality control
- optional network connection
- small footprint
| Volume flow (m³/min) | 5,10 |
| Pressure dew point (°C) | 3 |
| Pressure loss (bar) | 0,12 |
| Electrical power consumption at 100% Vol. (kW) | 0,61 |
| Electrical power consumption at 50% Vol. (kW) | 0,31 |
| Electrical power consumption at 10% Vol. (kW) | 0,09 |
| Min. overpressure (bar) | 3 |
| Max. Overpressure (bar) | 16 |
| Min. ambient temperature (°C) | 3 |
| Max. Ambient temperature (°C) | 50 |
| Max. Compressed air inlet temperature (°C) | 60 |
| Width (mm) | 588 |
| Depth (mm) | 797 |
| Height (mm) | 1515 |
| Weight (kg) | 132 |
| Compressed air connection | G 1½ |
| Condensate drain connection | G 1/4 |
| Electrical supply | 230 V / 1 Ph / 50 Hz |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 0,67 |
| CO2 equivalent (tonnes) | 0,42 |
| Global warming potential GWP | 631 |
| Energy-saving control | Cold accumulator |
