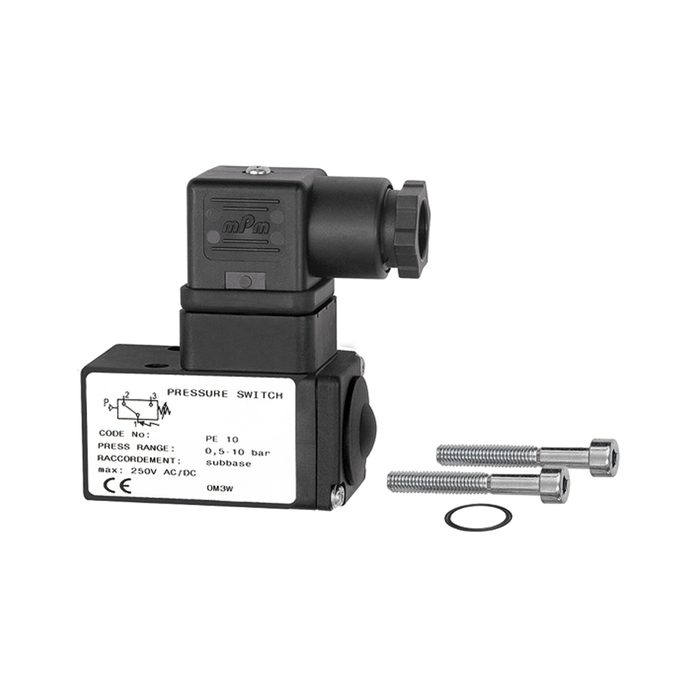

RIEGLER Pressure switch changeover contact design flangeable, 0.5-10 bar
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure switch changeover contact, flange-mounted, made of plastic (PA 61/XT), for pressure measurement - type DS 9410
The RIEGLER pressure switch changeover contact, flange-mounted, plastic, 0.5-10 bar switches electrical contacts at a set pressure value. The housing is made of plastic (PA 61/XT). The ambient temperature is between -10 °C and 60 °C. Protection class IP 65. Automatic pressure monitoring without manual control.
Field of application
Typical areas of application: Pressure monitoring, compressor control and system safety.
| Protection class | IP 65 |
| Electrical connection | Coupler socket CM 10 (PG11P) to ISO 4400 - 4 contacts can be rotated by 90 |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Material | Plastic (PA 61/XT) |
| Area of application | Air, neutral gases (lubricated or unlubricated) |
| Switching voltage | max. 250 V AC/DC |
| Switching frequency | 60 cycles/min. |
| Function | Changeover contact |
| Setting range min. | 0.5 bar |
| Type of construction | Diaphragm (NBR) spring-loaded |
| Description of the | Pressure switch, flange-mounted |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Setting range max. | 10 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | PLUS |
| REACH SVHC2 Substance Name | 6,6'-Di-tert-butyl-2,2'-methylenedi-p-cresol |
