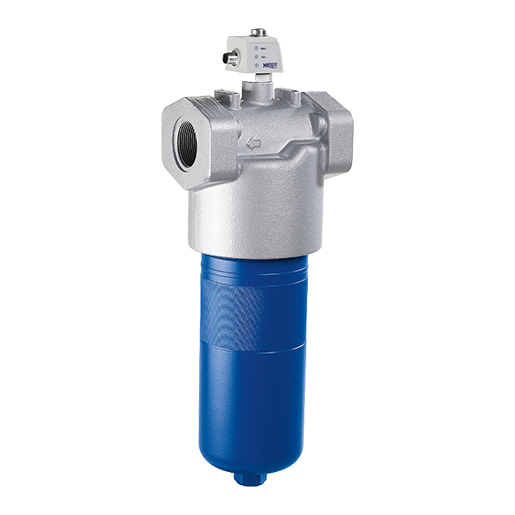

Hengst inline filter simple 350LEN0100-G25B00-V5,0-M-U4 / R928032458
High-quality filter solutions for hydraulic systems - Hengst Filtration has stood for excellence, progress and reliable performance for many years
| Connection type | Pipe thread according to SAE J1926 |
| Connection size | 1 1/16-12 UN-2B [SAE 12] |
| Display pressure (bar) | 5 |
| Series | 350LEN |
| Operating temperature | -10°C to +100°C |
| Bypass | no |
| Element | Stainless steel wire mesh 25µm |
| Filtertype | Inline filter, simple |
| Weight (kg) | 59 |
| Max. Operating pressure (bar) | 350 |
| Nominal size | 0100 |
| Contamination indicator | optical / brass |
| Seal material | NBR seal |
| Filter head material | Cast iron with spheroidal graphite |
| Filter bowl material | Steel |
