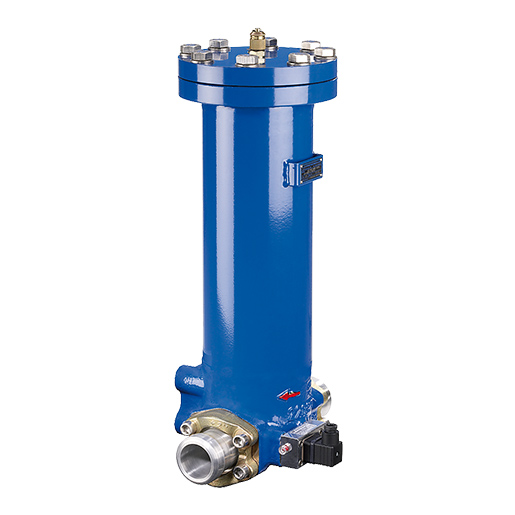

Hengst inline filter simple 350LEN0063-PWR6A00-V5,0-M-R3 / R928033409
High-quality filter solutions for hydraulic systems - Hengst Filtration has stood for excellence, progress and reliable performance for many years
| Connection type | Pipe thread according to ISO 228 |
| Connection size | G 3/4 |
| Display pressure (bar) | 5 |
| Series | 350LEN |
| Operating temperature | -10°C to +100°C |
| Bypass | yes |
| Element | Glass fiber 6µm |
| Filtertype | Inline filter, simple |
| Weight (kg) | 5 |
| Max. Operating pressure (bar) | 350 |
| Nominal size | 0063 |
| Contamination indicator | optical / brass |
| Seal material | NBR seal |
| Filter head material | Cast iron with spheroidal graphite |
| Filter bowl material | Steel |
