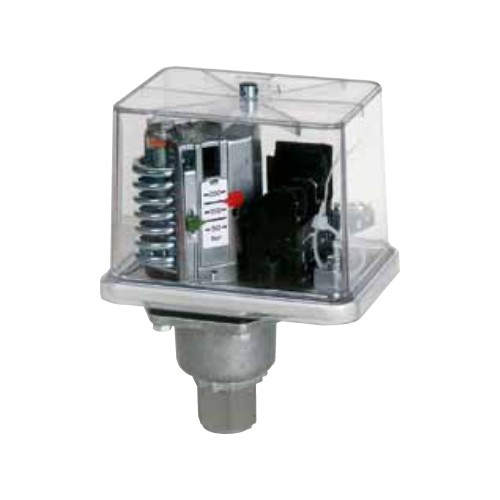

TIVAL Pressure switch FF 4-30 AAG 4 - 30 bar 1/4" stainless steel
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-30 AAG pressure switch 4 - 30 bar - stainless steel, up to +200 °C | Art. 1010066
The TIVAL Pressure switch with stainless steel diaphragm bellows combines reliability and accuracy for industrial pressure monitoring. The upper switching point is adjustable from 4 ... 30, the lower switching point is adjustable from 1 ... 26.4. Connection: G 1/4" stainless steel - robust design in matching material variant. Application range: Demineralized water - with proven long-term stability. max. operating pressure: 30 bar, medium temperature: up to +200°C. Standards & approvals: VDE 0660, IEC 337-1, IEC 553-1. All settings are clearly visible through the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 4 ... 30 |
| Lower switching point adjustable (bar) | 1 ... 26,4 |
| small pressure difference (bar) | 1,8 3,6 |
| Max. Operating pressure (bar) | 30 |
| Max. Test pressure (bar) | 42 |
| Factory setting (bar) | 16 / 20 |
| Pressure connection | G 1/4" stainless steel |
| Model range - Pressure switch | FF 4 / AAG |
Similar Products
| Product | Price | ||
|---|---|---|---|

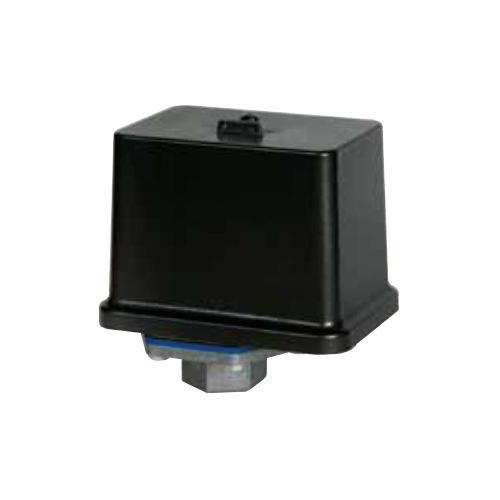

![[1030132] TIVAL Pressure switch FF 4-30 AC AAG 4 - 30 bar 1/4" stainless steel](/web/image/product.template/149379/image_128/%5B1030132%5D%20TIVAL%20Pressure%20switch%20FF%204-30%20AC%20AAG%204%20-%2030%20bar%201-4%22%20stainless%20steel?unique=d4441e6)
|
