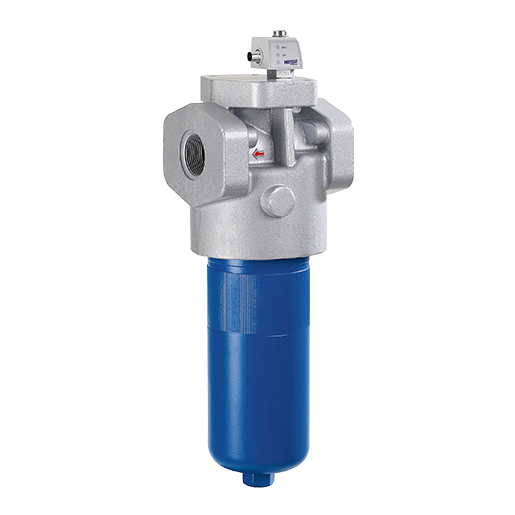

Hengst inline filter simple 445LEN0040-G40A00-V5,0-M-R3 / R928042688
High-quality filter solutions for hydraulic systems - Hengst Filtration has stood for excellence, progress and reliable performance for many years
| Connection type | Pipe thread according to ISO 228 |
| Connection size | G 3/4 |
| Display pressure (bar) | 5 |
| Series | 445LEN |
| Operating temperature | -10°C to +100°C |
| Bypass | yes |
| Element | Stainless steel wire mesh 40µm |
| Filtertype | Inline filter, simple |
| Weight (kg) | 44 |
| Max. Operating pressure (bar) | 450 |
| Nominal size | 0040 |
| Contamination indicator | optical / brass |
| Seal material | NBR seal |
| Filter head material | GGG |
| Filter bowl material | Steel |
