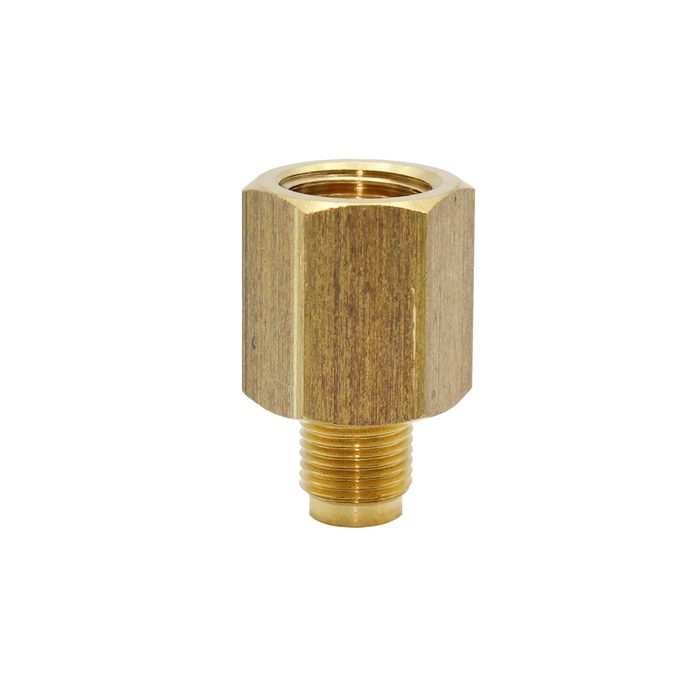

RIEGLER Pressure gauge connection nipple brass, G 1/4 bushing, G 1/8 taps
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
101249EAN :
4047322066495Category :
Accessories for Pressure GaugesWeight :
0.03 kgRIEGLER Pressure gauge connection nipple made of brass, for pressure measurement - Type 257.22
The RIEGLER pressure gauge connection nipple, brass, G 1/4 socket, G 1/8 spigot adds protection and connection functions to pressure gauges. The housing is made of brass. Protection and functional extension for pressure gauges.
Field of application
Typical areas of application: Professional pressure gauge installation.
| Sleeve | G 1/4 |
| Material | Brass |
| Tenon | G 1/8 |
| PN | 400 bar |
| Description of the | Pressure gauge connection nipple |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
