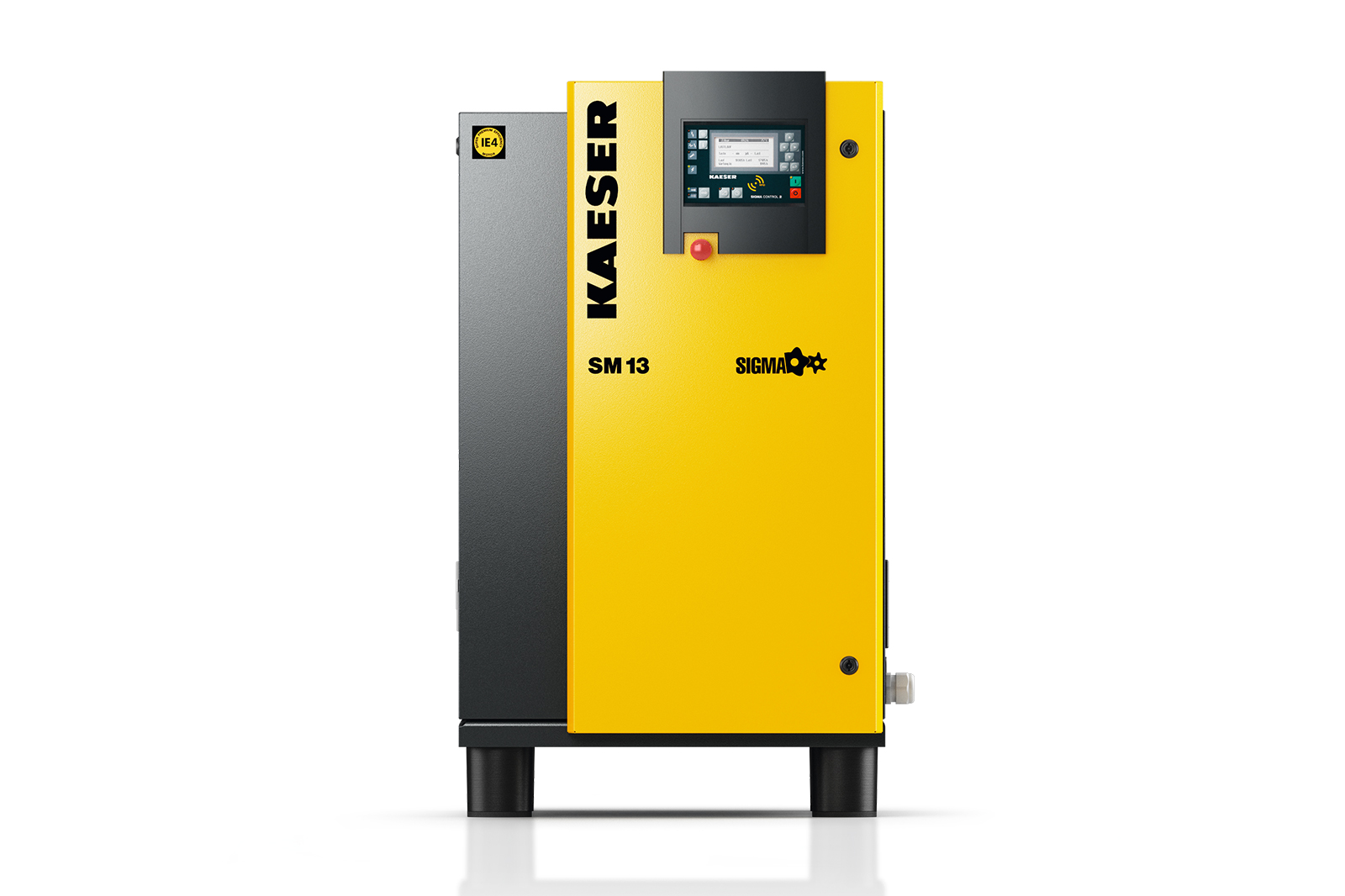

KAESER Screw compressor model SM 13-8 SC2 OAL
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
The KAESER SM screw compressor with SIGMA PROFILE and SIGMA CONTROL 2 compressor control unit
| Volume flow at overpressure (m³/min) | 1,32 |
| Max. Overpressure (bar) | 8 |
| Rated power drive motor (kW) | 7,5 |
| Drive motor efficiency class | IE4 |
| Permissible pressure loss cooling channel (Pa) | 30 |
| Max. usable warm air volume (m³/h) | 2100 |
| Max. usable heat output "warm air" (kW) | 9,1 |
| Max. usable heat output "warm water" (kW) | 6,2 |
| Required supply air opening (m2) | 0,25 |
| Drive motor protection class | IP55 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Full load current | 16 A |
| Fuse: Max current | 20 A |
| Cooling fluid filling quantity (litres) | 4 |
| Width (mm) | 630 |
| Depth (mm) | 790 |
| Height (mm) | 1100 |
| Weight (kg) | 240 |
| Compressed air connection | G 3/4 |
| Sound pressure level (dbA) | 65 |
| Model range - Screw compressors | SM | 5.5 - 9 kW | Industry |
