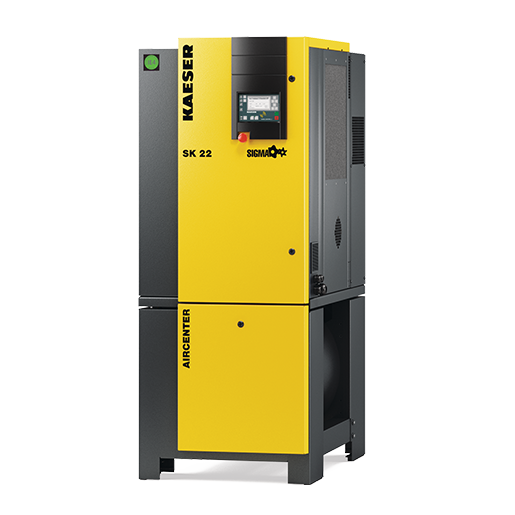

KAESER Screw compressor model Aircenter SK 22-11 SC2 OAL

28,000.70 € 28000.7 EUR 28,000.70 € VAT Included

23,530.00 € VAT Included

Brand

This combination does not exist.

KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919

Product no. :

101992.01

Category :

Compressed Air Stations

Weight :

579.00 kg

Delivery area :

Germany

KAESER complete screw compressor systems

AIRCENTER SM - space-saving complete solution

KAESER AIRCENTER compressed air stations offer demanding customers an efficient and high-quality complete solution. The combination of screw compressor with SIGMA PROFILE, attached refrigeration dryer and compressed air receiver ensures a reliable compressed air supply. The integrated refrigeration dryer supplies high-quality compressed air and protects your machines from corrosion damage. All you need for commissioning is a power connection and a connection to your compressed air network, eliminating the need for complex piping and installation. These compact compressed air stations are ideal for smaller industrial operations.

Performance parameters for Aircenter SM:

Pressure: 8 / 11 / 15 bar
Volume flow range: 1.32 - 2.50 m³/min
Power range: 11 - 15 KW
Space requirement: 1.03 m²

Your advantages:

low space requirement

quick and easy installation

with attached refrigeration dryer

incl. horizontal container with 270 liters

little space

Made in Germany

Max. Overpressure (bar)	11
Drive motor efficiency class	IE3
Volume flow at overpressure (m³/min)	1,67
Rated power drive motor (kW)	11
Permissible pressure loss cooling channel (Pa)	30
Max. usable warm air volume (m³/h)	2500
Max. usable heat output "warm air" (kW)	13,2
Required supply air opening (m2)	0,45
Drive motor protection class	IP55
Electrical supply	400 V / 3 Ph / 50 Hz
Full load current	26 A
Fuse: Max current	32 A
Cooling fluid filling quantity	7,2
Width (mm)	750
Depth (mm)	1335
Height (mm)	1880
Weight (kg)	579
Volume of compressed air tank (litres)	350
Compressed air connection	G 1
Sound pressure level (dbA)	66
Refrigeration dryer power consumption (kW)	0,49
Refrigeration dryer pressure dew point (°C)	3
Refrigeration dryer pressure loss (bar)	0,06
Refrigerant	R-513A
Refrigerant charge (kg)	0,52
CO2 equivalent (tonnes)	0,33
Global warming potential GWP	631
Model range - Screw compressors	SK \| 11 - 15 kW \| Industry
