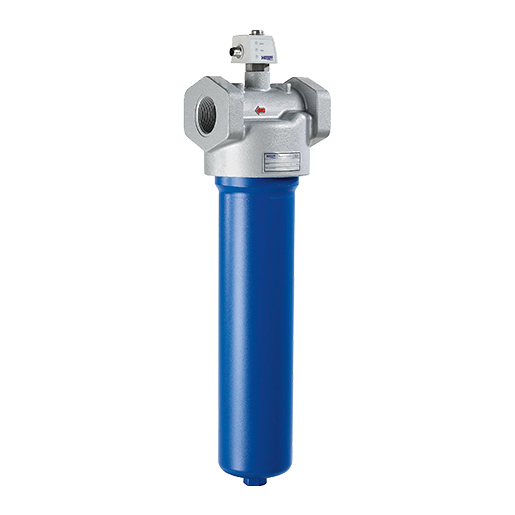

Hengst inline filter simple 110LEN0400-2X/PWR6A00-V2,2-M-R6 / R928070238
High-quality filter solutions for hydraulic systems - Hengst Filtration has stood for excellence, progress and reliable performance for many years
| Connection type | Pipe thread according to ISO 228 |
| Connection size | G 1 1/2 |
| Display pressure (bar) | 2,2 |
| Series | 110LEN |
| Operating temperature | -20°C to +100°C |
| Bypass | yes |
| Element | Glass fiber 6µm |
| Filtertype | Inline filter, simple |
| Weight (kg) | 4.9 |
| Max. Operating pressure (bar) | 110 |
| Nominal size | 0400 |
| Contamination indicator | optical / aluminum |
| Seal material | NBR seal |
| Filter head material | Aluminum |
| Filter bowl material | Aluminum |
