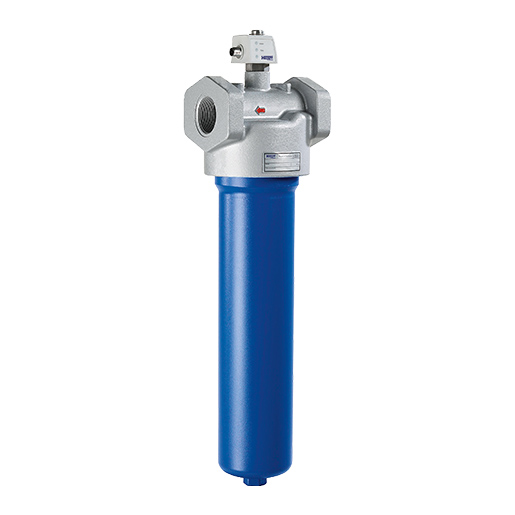

Hengst inline filter simple 110LEN0400-2X/PWR6B00-V5,0-M-U6 / R928070245
High-quality filter solutions for hydraulic systems - Hengst Filtration has stood for excellence, progress and reliable performance for many years
| Connection type | Pipe thread according to SAE J1926 |
| Connection size | 1 7/8-12 UN 2B [SAE 24] |
| Display pressure (bar) | 5 |
| Series | 110LEN |
| Operating temperature | -20°C to +100°C |
| Bypass | no |
| Element | Glass fiber 6µm |
| Filtertype | Inline filter, simple |
| Weight (kg) | 4.9 |
| Max. Operating pressure (bar) | 110 |
| Nominal size | 0400 |
| Contamination indicator | optical / brass |
| Seal material | NBR seal |
| Filter head material | Aluminum |
| Filter bowl material | Aluminum |
