KAESER Filter adsorption model F9KA G 1/2"
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
102104.10200Category :
Compressed Air FiltersWeight :
2.30 kgDelivery area :
DeutschlandDer KAESER Aktivkohlefilter ist optimiert für die effektive Adsorption und Entfernung von Öldämpfen aus Druckluftsystemen. Dieser Filter gewährleistet eine hohe Luftqualität und schützt nachgeschaltete Geräte vor Verunreinigungen.
| Volume flow (m³/min) | 0,90 |
| Compressed air inlet connection | G 1/2" |
| Differential pressure in new condition | < 0,03 |
| Min. overpressure | 2 bar |
| Max. Overpressure | 16 bar |
| Width (mm) | 121 |
| Height (mm) | 434 |
| Depth (mm) | 91 |
| Condensate drain | Ball valve |
| Min. ambient temperature (°C) | +3 |
| Max. Ambient temperature (°C) | +50 |
| Min. inlet temperature compressed air (°C) | +3 |
| Max. Compressed air inlet temperature (°C) | +66 |
| Degree of filtration | KA - Activated carbon filter adsorption |
Similar Products
| Product | Price | ||
|---|---|---|---|
![[102104.10300] KAESER Filter adsorption model F9KA G 3/4"](/web/image/product.template/262259/image_128/%5B102104.10300%5D%20KAESER%20Filter%20adsorption%20model%20F9KA%20G%203-4%22?unique=d4441e6)
|
499.80 € | ||

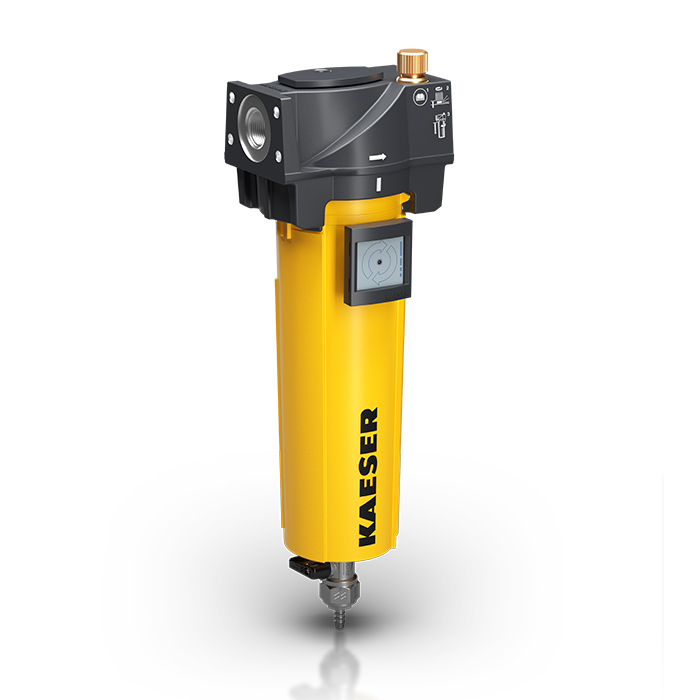

![[102104.10100] KAESER Filter adsorption model F9KA G 3/8"](/web/image/product.template/262257/image_128/%5B102104.10100%5D%20KAESER%20Filter%20adsorption%20model%20F9KA%20G%203-8%22?unique=d4441e6)
|
