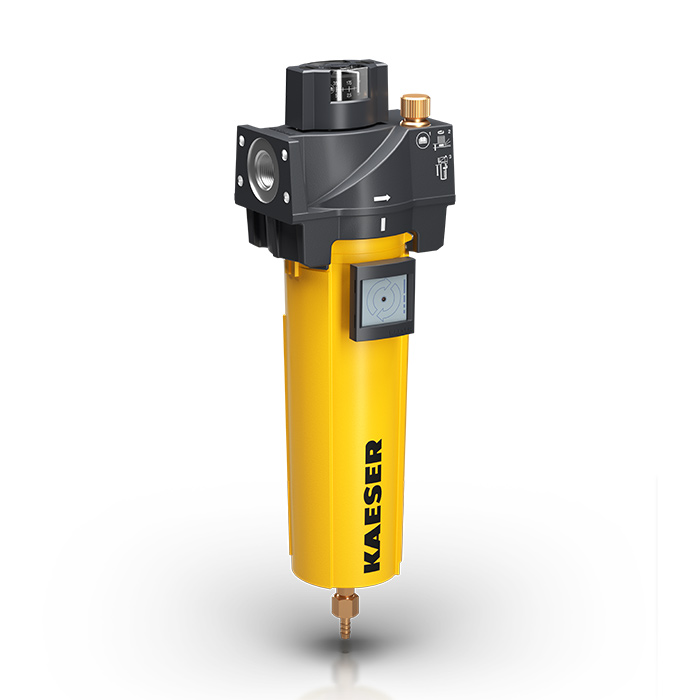

KAESER Filter Basic model F22KB G 1", Float drain
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
102113.10411Category :
Compressed Air FiltersWeight :
4.20 kgDelivery area :
DeutschlandThe KAESER coalescence filter Basic offers reliable filtration of solid and liquid aerosols as well as solid particles in compressed air systems. Its effective technology protects downstream equipment from harmful contaminants and ensures high air quality.
| Volume flow (m³/min) | 2,20 |
| Compressed air inlet connection | G 3/4" |
| Differential pressure in new condition | < 0,03 |
| Differential pressure at saturation | < 0,14 |
| Residual aerosol content | < 0,1 |
| Min. overpressure | 2 bar |
| Max. Overpressure | 16 bar |
| Weight (kg) | 4,4 |
| Width (mm) | 132 |
| Height (mm) | 428 |
| Depth (mm) | 102 |
| Condensate drain | Float |
| Degree of filtration | KB - Coalescence filter Basic |
Similar Products
| Product | Price | ||
|---|---|---|---|

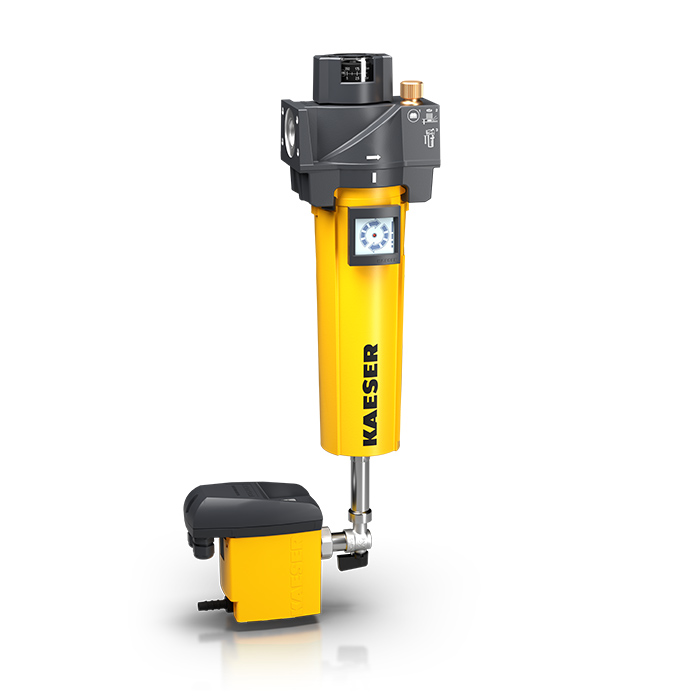

![[MDM500011187] KAESER Filter Basic model F22KB G 1", ECO-DRAIN 30](/web/image/product.template/262375/image_128/%5BMDM500011187%5D%20KAESER%20Filter%20Basic%20model%20F22KB%20G%201%22%2C%20ECO-DRAIN%2030?unique=d4441e6)
|
