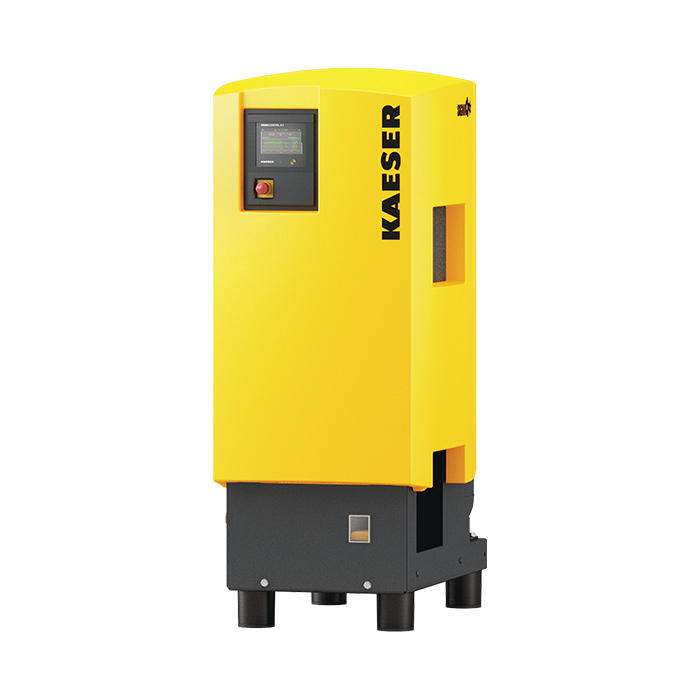

KAESER SXC 8-8 SC3 rotary screw compressor incl. refrigeration dryer and receiver

KAESER SXC 8-8 SC3: The compact compressed air station with max. 8 bar

The SXC series was developed by KAESER developed specifically for tough everyday use in trade workshops. The SXC 8-8 SC3 is the top model in the SXC series. With 5.5 kW motor power, this compressed air station achieves a volume flow of 0.80 m³/min (800 l/min) at 7.5 bar operating pressure and a maximum overpressure of max. 8 bar. Where conventional metal housings quickly become dented or scratched in confined workshops, the SXC impresses with a rotationally sintered, double-walled PE hood - virtually indestructible, corrosion-free and extremely sound-insulating. With a sound pressure level of just 69 dB(A), it is pleasantly quiet.

As a ready-to-use complete system, the SXC 8-8 combines a screw compressor with the highly efficient SIGMA PROFILE, the integrated CT 8 refrigeration dryer (pressure dew point +6 °C) and a 215-liter compressed air tank on a footprint of just 0.62 m². The IE3 premium efficiency motor with 5.5 kW rated power and the maintenance-free V-ribbed belt drive ensure energy-efficient and reliable operation. The Sigma Control 3 S touch control enables intuitive monitoring of all operating parameters and controls the efficient start-stop regulation. Installation is extremely simple: connect the power supply and compressed air line - done.

Recommended use: Ideal for automotive workshops, carpentry and assembly companies with standard compressed air applications such as tire inflation, blowing out, sanding and nailing.

Accessories & documentation: Suitable filters and oil/water separators can be found in the Accessories section. All technical data, data sheets and operating instructions are available for download in the respective tabs.

Note: This dryer series contains fluorinated greenhouse gas. All models contain the refrigerant R-513A (GWP 631).

Alternative: Do you need a solution for continuous industrial use? You can find the right counterpart from the KAESER Aircenter series below under "Alternative products".
