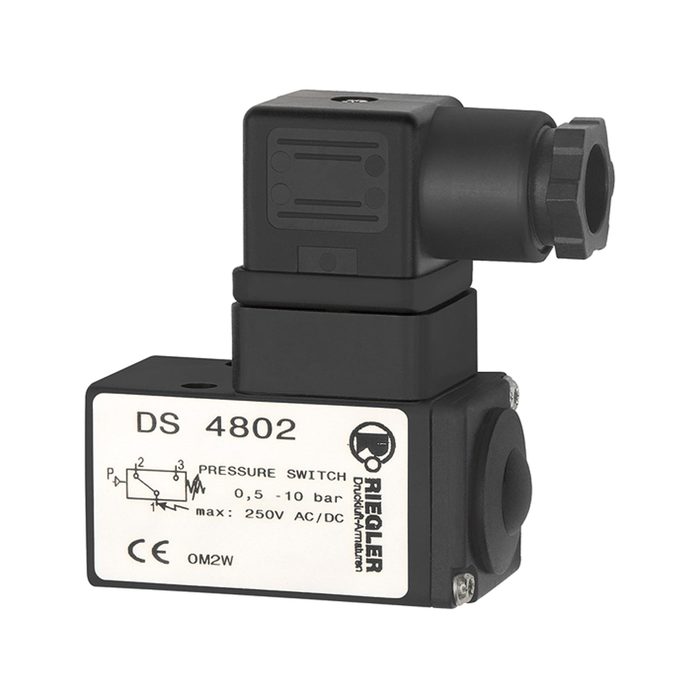

RIEGLER Pressure switch changeover contact design, G 1/4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure switch changeover contact, flange-mounted, made of black anodized aluminium - type DS 4803
The RIEGLER pressure switch changeover contact, flange-mounted, aluminum, G 1/4, 0.5-16 bar switches electrical contacts at a set pressure value. The housing is made of black anodized aluminium. The ambient temperature is between -25 °C and 85 °C. Connection thread G 1/4 - suitable for common industry standards. Automatic pressure monitoring without manual control.
Field of application
Typical areas of application: Pressure monitoring, compressor control and system safety.
| Electrical connection | Coupling socket PG 11 P to ISO 4400 |
| Ambient temperature min. | -25 °C |
| Ambient temperature max. | 85 °C |
| Material | Black anodized aluminium |
| Area of application | Air, neutral gases (lubricated or unlubricated) |
| Switching voltage | max. 250 V AC/DC |
| Switching frequency | 60/min |
| Thread | G 1/4 |
| Function | Changeover contact |
| Setting range min. | 0.5 bar |
| Type of construction | Diaphragm (NBR) spring-loaded |
| Setting range max. | 16 bar |
| Class name | PLUS |
