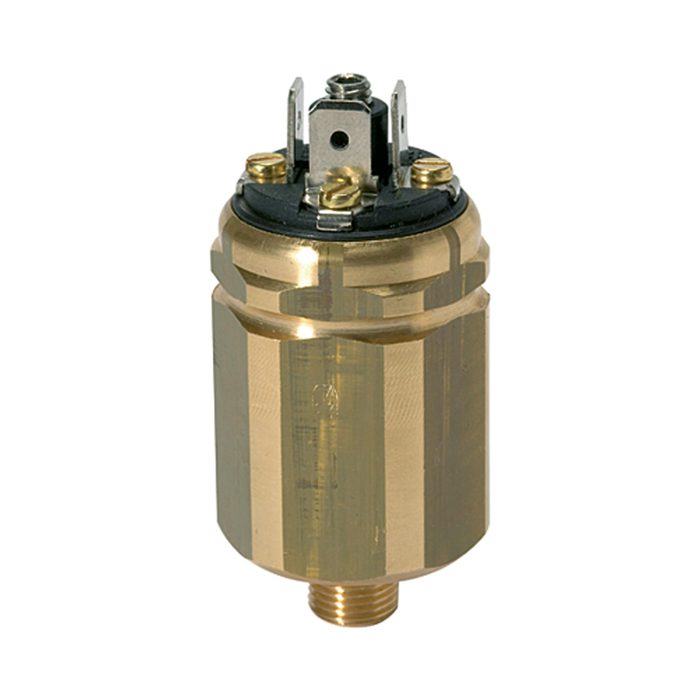

RIEGLER Vacuum pressure switch, Brass, G 1/8, Setting range 20 - 800 mbar
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Vacuum pressure switch made of brass, for pressure measurement, G 1/8 - type DS 3001
The RIEGLER vacuum pressure switch, MS, changeover contact, G 1/8, 20 - 800 mbar switches electrical contacts at a set pressure value. The housing is made of brass. The ambient temperature is between -25 °C and 85 °C. Connection thread G 1/8 - suitable for common industry standards. Automatic pressure monitoring without manual control.
Field of application
Typical areas of application: Pressure monitoring, compressor control and system safety.
| Electrical connection | Spade connector 3 x 6.3 x 0.8 |
| Ambient temperature min. | -25 °C |
| Ambient temperature max. | 85 °C |
| Material | Brass |
| Area of application | Air, hydraulic oil, oil emulsions, water |
| Switching voltage | 42 V |
| Switching frequency | 200/min |
| Setting range | 20 - 800 mbar Vacuum |
| Thread | G 1/8 |
| Function | Changeover contact |
| Type of construction | Diaphragm (NBR) spring-loaded |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
