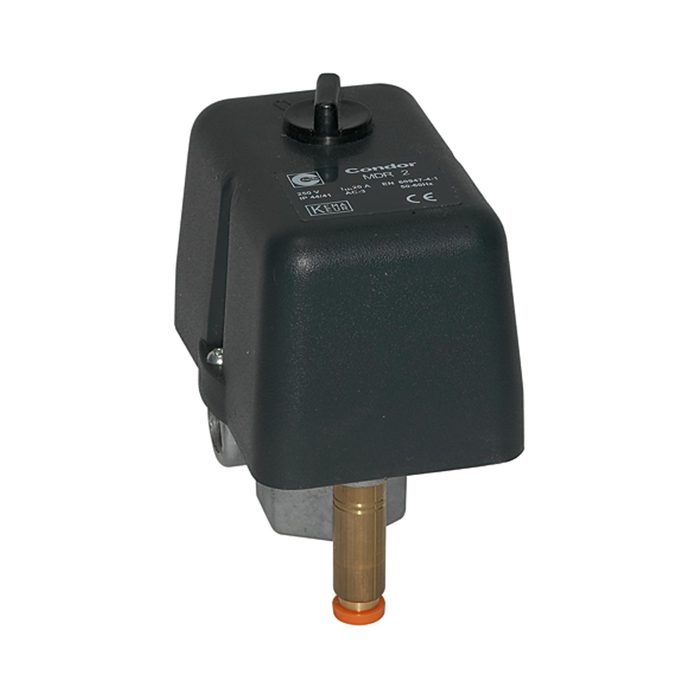

RIEGLER Pressure switch for compressors, AC design, G 1/4, 4 - 12 bar
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Compressors Pressure switch for pressure measurement - Type MDR 2/11
The RIEGLER compressors pressure switch, alternating current, F4 1/4, G 1/4, 4-12 bar switches electrical contacts at a set pressure value. The permissible medium temperature is between -5 °C and 80 °C. Protection class IP 44. Protection class IP 44. Automatic pressure monitoring without manual control.
Field of application
Typical areas of application: Pressure monitoring, compressor control and system safety.
| Protection class | IP 44 |
| Medium temperature min. | -5 °C |
| Medium temperature max. | 80 °C |
| Switching frequency | max. 120 (electrical), 600 (mechanical) |
| Switching capacity | 2.2 kW |
| Switch-off pressure max. | 12 bar |
| Contact type | Normally closed contact (2-pole) |
| Setting range min. | 4 bar |
| Execution | Alternating current version |
| Setting range max. | 12 bar |
| Compressed air connection | G 1/4 |
| Class name | PLUS |
Accessory Products
| Product | Price | ||
|---|---|---|---|

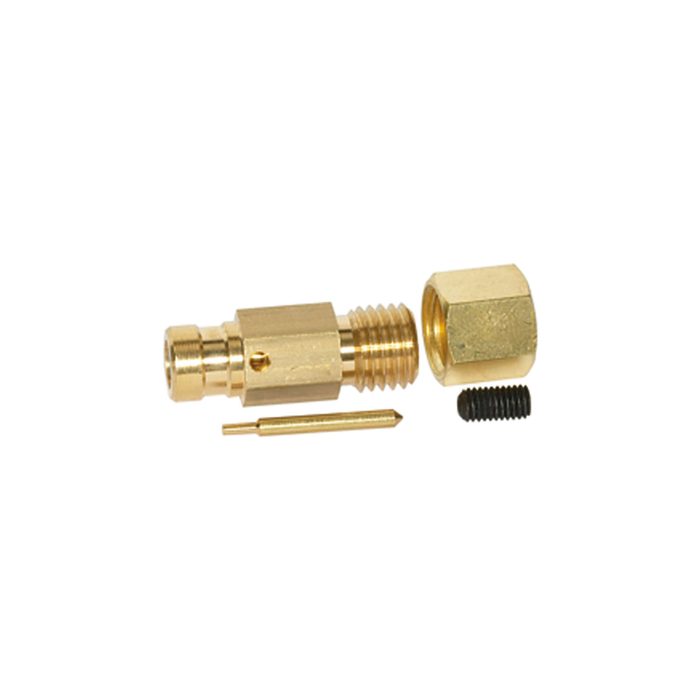

![[103041] RIEGLER Relief valve for compr. type "MDR2", with cutting ring connection](/web/image/product.template/171010/image_128/%5B103041%5D%20RIEGLER%20Relief%20valve%20for%20compr.%20type%20%22MDR2%22%2C%20with%20cutting%20ring%20connection?unique=d4441e6)
|
14.03 € | ||

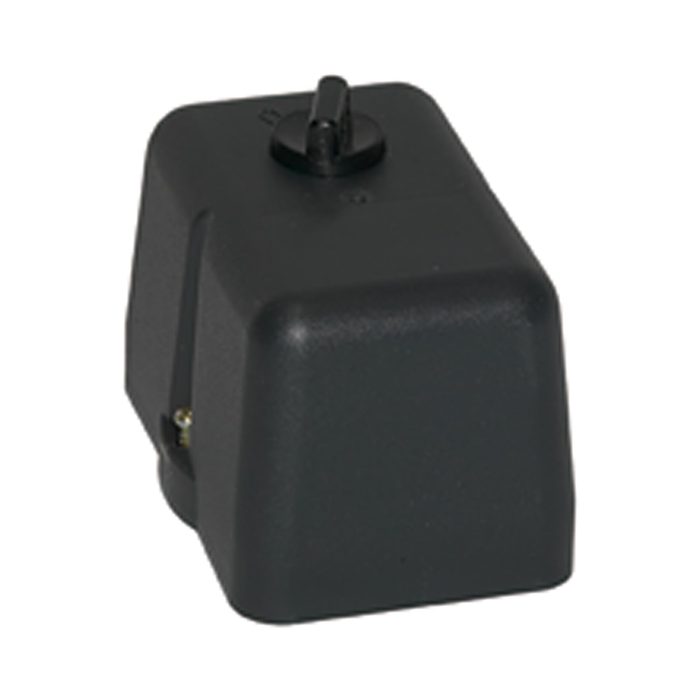

![[103042] RIEGLER Hood with on / off switch](/web/image/product.template/171011/image_128/%5B103042%5D%20RIEGLER%20Hood%20with%20on%20-%20off%20switch?unique=d4441e6)
|
17.15 € | ||

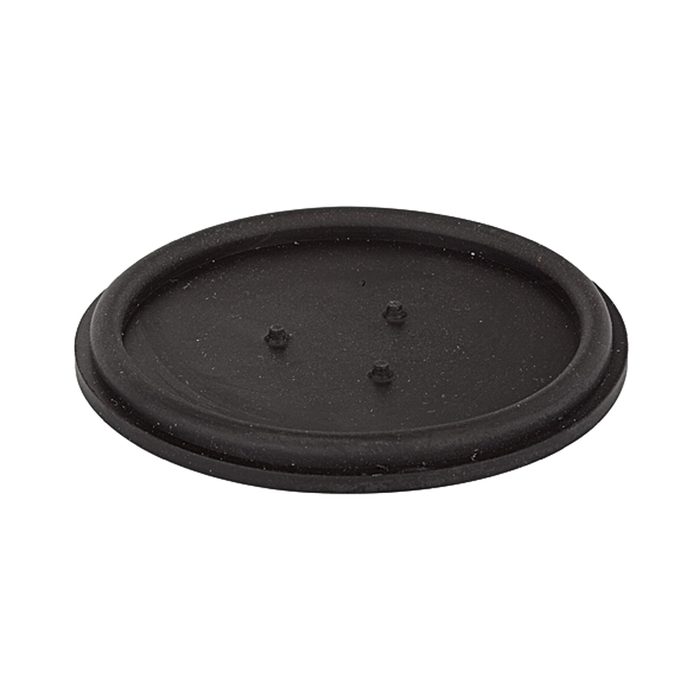

![[103043] RIEGLER Diaphragm](/web/image/product.template/171012/image_128/%5B103043%5D%20RIEGLER%20Diaphragm?unique=d4441e6)
|
