RIEGLER 3-way ball valve, Standard, L-hole, nickel-plated brass, Rp 3/8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-way ball valve made of nickel-plated brass, for industrial systems, Rp 3/8 - type 1081 B
The RIEGLER 3-way ball valve, standard, L-bore, nickel-plated brass, Rp 3/8, DN 10 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass with PTFE seals. The permissible medium temperature is between -10 °C and 120 °C. Connection thread Rp 3/8 (Rp thread to ISO 7-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Nickel-plated brass |
| Sealing material | PTFE |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 120 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 120 °C |
| Interior parts | Nickel-plated brass |
| Hand lever | Aluminum, painted black |
| Thread | Rp 3/8 |
| DN | 10 |
| PN | 40 bar |
| Thread standard | Rp thread according to ISO 7-1 |
| A | 100 mm |
| B | 61 mm |
| L | 55 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | EASY |
Similar Products
| Product | Price | ||
|---|---|---|---|
![[103379] RIEGLER 3-way ball valve, Standard, L-hole, nickel-plated brass, Rp 1](/web/image/product.template/171346/image_128/%5B103379%5D%20RIEGLER%203-way%20ball%20valve%2C%20Standard%2C%20L-hole%2C%20nickel-plated%20brass%2C%20Rp%201?unique=d4441e6)
|
83.51 € | ||
![[103381] RIEGLER 3-way ball valve, Standard, L-hole, nickel-plated brass, Rp 1 1/2](/web/image/product.template/171348/image_128/%5B103381%5D%20RIEGLER%203-way%20ball%20valve%2C%20Standard%2C%20L-hole%2C%20nickel-plated%20brass%2C%20Rp%201%201-2?unique=d4441e6)
|
179.19 € | ||
![[103380] RIEGLER 3-way ball valve, Standard, L-hole, nickel-plated brass, Rp 1 1/4](/web/image/product.template/171347/image_128/%5B103380%5D%20RIEGLER%203-way%20ball%20valve%2C%20Standard%2C%20L-hole%2C%20nickel-plated%20brass%2C%20Rp%201%201-4?unique=d4441e6)
|
112.16 € | ||
![[103377] RIEGLER 3-way ball valve, Standard, L-hole, nickel-plated brass, Rp 1/2](/web/image/product.template/171344/image_128/%5B103377%5D%20RIEGLER%203-way%20ball%20valve%2C%20Standard%2C%20L-hole%2C%20nickel-plated%20brass%2C%20Rp%201-2?unique=d4441e6)
|
45.30 € | ||

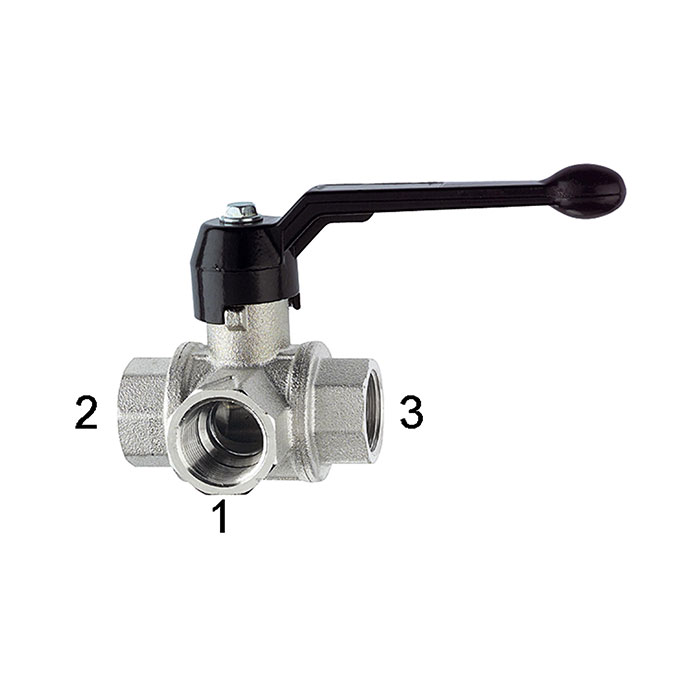

![[103375] RIEGLER 3-way ball valve, Standard, L-hole, nickel-plated brass, Rp 1/4](/web/image/product.template/171342/image_128/%5B103375%5D%20RIEGLER%203-way%20ball%20valve%2C%20Standard%2C%20L-hole%2C%20nickel-plated%20brass%2C%20Rp%201-4?unique=d4441e6)
|
