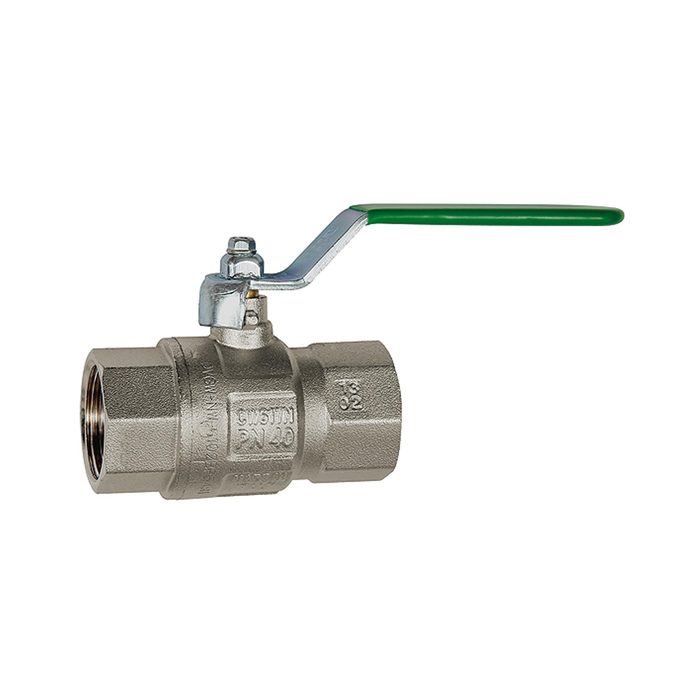

RIEGLER Potable water ball valve, Manual lever, IT/IT, Rp 1/4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Chrome-plated brass drinking water ball valve, for industrial systems, Rp 1/4 - type 3350.701
The RIEGLER drinking water ball valve, hand lever, IG/IG, MS chrome-plated, Rp 1/4 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of chrome-plated brass. The operating temperature is between -20 °C and 150 °C. Connection thread Rp 1/4 (thread according to ISO 7-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Chrome-plated brass |
| Area of application | Drinking water, water |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR / FKM |
| Hand lever | Steel, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| DVGW approval | DIN EN 13828:2003-12, DVGW W 570 |
| Thread | Rp 1/4 |
| DN | 8 |
| SW | 18 mm |
| PN | 50 bar |
| Thread standard | Thread according to ISO 7-1 |
| A | 85.5 mm |
| B | 41.8 mm |
| L | 49.5 mm |
| E | 11 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
