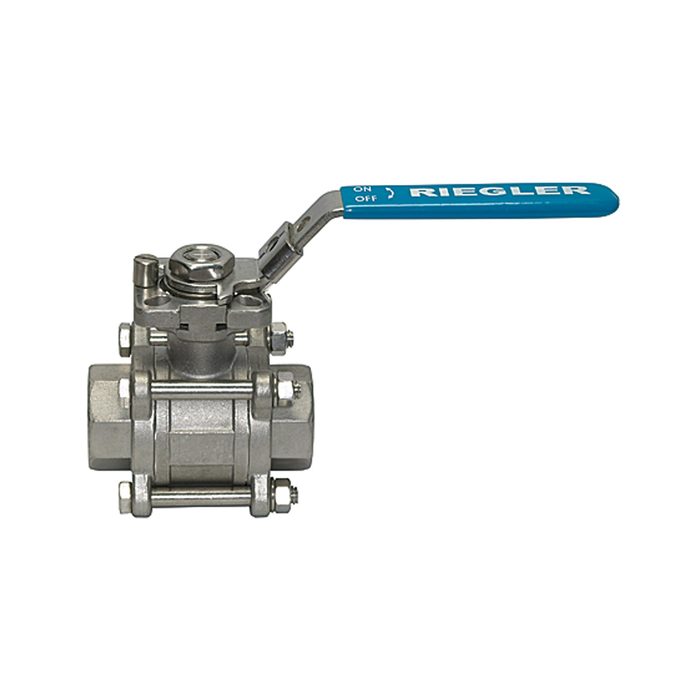

RIEGLER Stainless steel ball valve, Thread design, Full passage, G 1 1/2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel ball valve made of stainless steel 1.4401 / 1.4408, for industrial systems, max. 63 bar - Type 390.07
The RIEGLER stainless steel ball valve, threaded version, full bore, G 1 1/2 opens or shuts off the media flow with a quarter turn - full bore with minimal pressure loss. The body is made of stainless steel 1.4401 / 1.4408 with seals made of RPTFE 15 % glass fiber reinforced. Designed for a maximum operating pressure of 63 bar. Connection thread G 1 1/2 (G thread to DIN EN ISO 228-1, flange plate (ISO 5211)) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Sealing material | RPTFE 15 % glass fiber reinforced |
| Max. operating pressure | 63 bar |
| Material | Stainless steel 1.4401 / 1.4408 |
| Hand lever | Stainless steel 1.4301 |
| Operating temperature max. | 160 °C |
| Thread | G 1 1/2 |
| DN | 40 |
| Thread standard | G-thread to DIN EN ISO 228-1, flange plate (ISO 5211) |
| A | 183 mm |
| B | 110 mm |
| L | 114 mm |
| Class name | STAINLESS STEEL |
