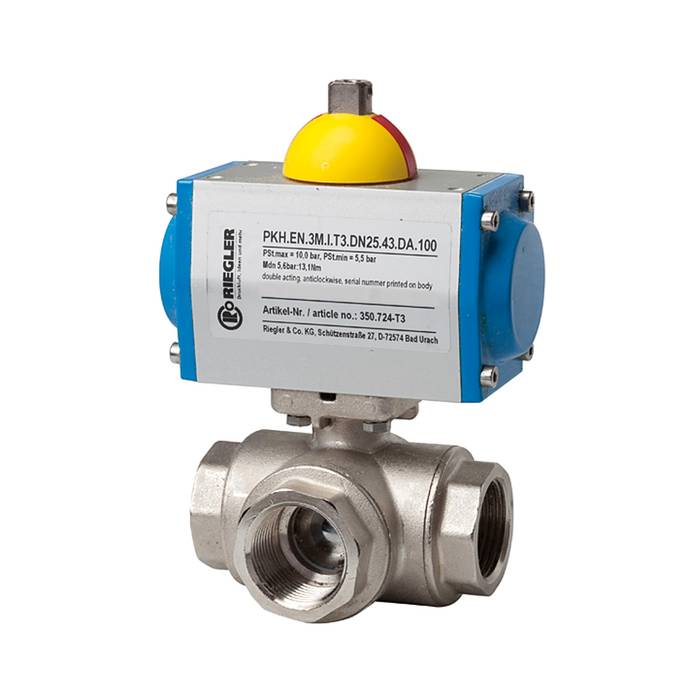

RIEGLER 3-way brass ball valve, Pneumat. actuation drive, L-hole, Rp 1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Brass ball valve for industrial systems, Rp 1 - Type 350.612
The RIEGLER brass ball valve, pneumat. Actuator, L-bore, Rp 1, L=116 opens or shuts off the media flow with a quarter turn - full passage with minimum pressure loss. The operating temperature is between -20 °C and 70 °C. Rp 1 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Actuator control pressure max. | 10 bar |
| Control pressure recommended | 5.5 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Rotation angle | 90 ° |
| Valve adapter | available as standard |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Nickel-plated brass, with ISO flange plate |
| Sealing material ball valve | PTFE / FKM |
| Thread | Rp 1 |
| DN | 25 |
| SW | 41 mm |
| PN | 40 bar |
| Position | L 2 |
| A | 116 mm |
| B | 141.5 mm |
| D | 30 mm |
| L | 97 mm |
| Execution | double-acting |
| Class name | MAX |
