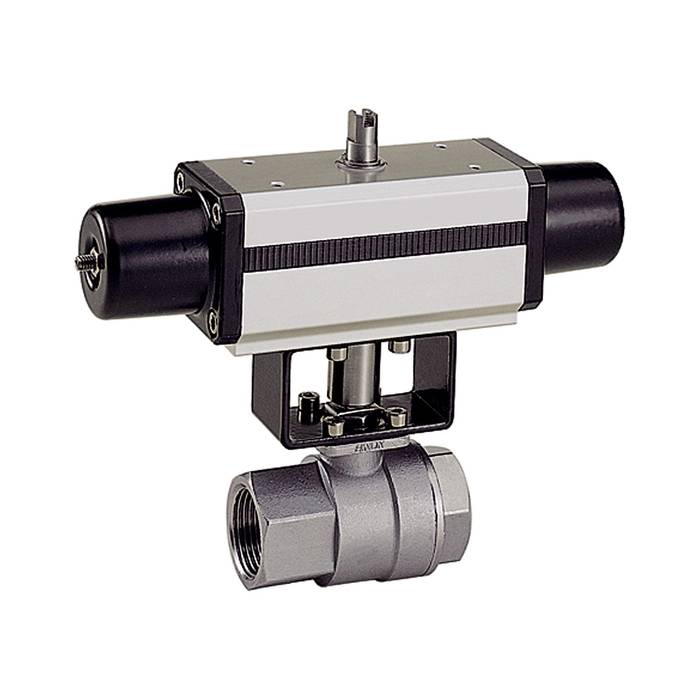

RIEGLER Stainless steel ball valve, Pneumatic actuation drive, Rp 3/4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel ball valve for industrial systems, Rp 3/4 - Type 351.521
The RIEGLER stainless steel ball valve, pneumat. Actuator, single-acting, Rp 3/4 opens or shuts off the media flow with a quarter turn - full passage with minimum pressure loss. The temperature range is between -20 °C and 80 °C. Rp 3/4 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Control pressure max. | 5.6 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Rotation angle | 90 ° |
| Valve adapter | available as standard |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Stainless steel 1.4401/1.4301/1.4310/1.4408, with ISO flange |
| Sealing material ball valve | PTFE / FKM |
| Thread | Rp 3/4 |
| DN | 20 |
| PN | 100 bar |
| A | 240 mm |
| B | 163 mm |
| L | 70 mm |
| Execution | single-acting - spring-closing |
| Class name | STAINLESS STEEL |
