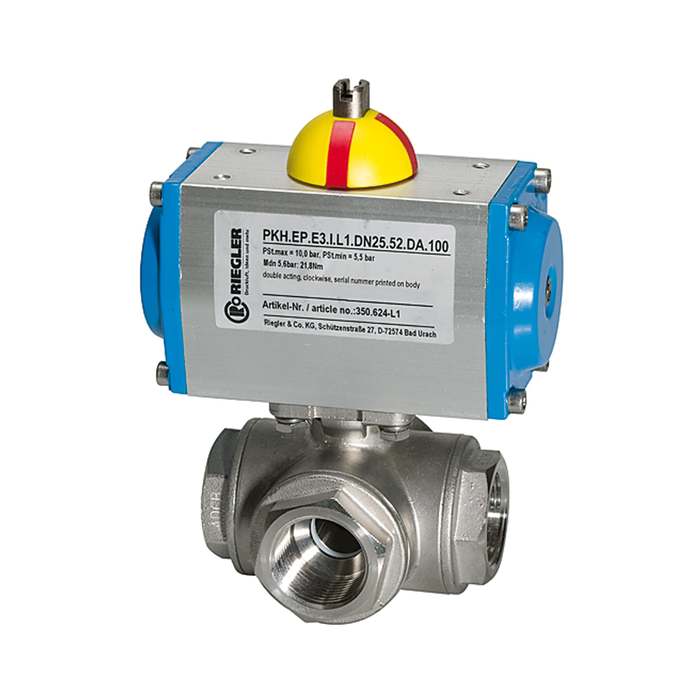

RIEGLER Stainless steel ball valve, Pneumat. actuation drive, L-hole
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER ES-Kuha for industrial systems, max. 63 bar, Rp 1 1/4 - Type 350.635-L1
The RIEGLER ES-Kuha, pneumat. Actuator single-acting, L-bore, Rp 11/4 opens or blocks the media flow with a quarter turn - full flow with minimum pressure loss. Designed for a maximum operating pressure of 63 bar. The operating temperature is between -20 °C and 70 °C. Rp 1 1/4 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Actuator control pressure max. | 10 bar |
| Control pressure recommended | 5.5 bar |
| Max. operating pressure | 63 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Rotation angle | 90 ° |
| Valve adapter | according to NAMUR |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Stainless steel 1.4401, with ISO flange plate |
| Sealing material ball valve | PTFE / FKM |
| Thread | Rp 1 1/4 |
| DN | 32 |
| SW | 50 mm |
| Position | L 2 |
| A | 161 mm |
| B | 179.5 mm |
| D | 36.5 mm |
| L | 90 mm |
| Execution | single-acting |
| Class name | STAINLESS STEEL |
