RIEGLER 3/2-5/2-way valve, NAMUR, G 3/8 (1), G 1/4 (3 + 5), 24 V DC
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-5/2-way valve made of aluminum, for pneumatic control, max. 8 bar - Type 552.04
The RIEGLER 3/2-5/2-way valve, NAMUR, G 3/8 (1), G 1/4 (3 + 5), 24 V DC controls the direction of the compressed air flow for targeted movement sequences. The housing is made of aluminum with NBR seals. The operating pressure range is 1.5 bar to 8 bar. The operating temperature is between -5 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for air, neutral gases (filtered). The flow rate is 1650 l/min. Operating voltage 24 V DC. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Medium | Air, neutral gases (filtered) |
| Housing | Aluminum |
| Sealing material | NBR |
| Electrical connection | Device plug PG 9 with LED display |
| Working pressure min. | 1.5 bar |
| Working pressure max. | 8 bar |
| Operating temperature min. | -5 °C |
| Operating temperature max. | 50 °C |
| Manual override | latching/touching |
| Flow rate | 1650 l/min |
| DN | 10 |
| Connection | G 3/8 |
| Connection | G 1/4 |
| Connection | G 1/4 |
| Tension | 24 V DC |
| Class name | EASY |

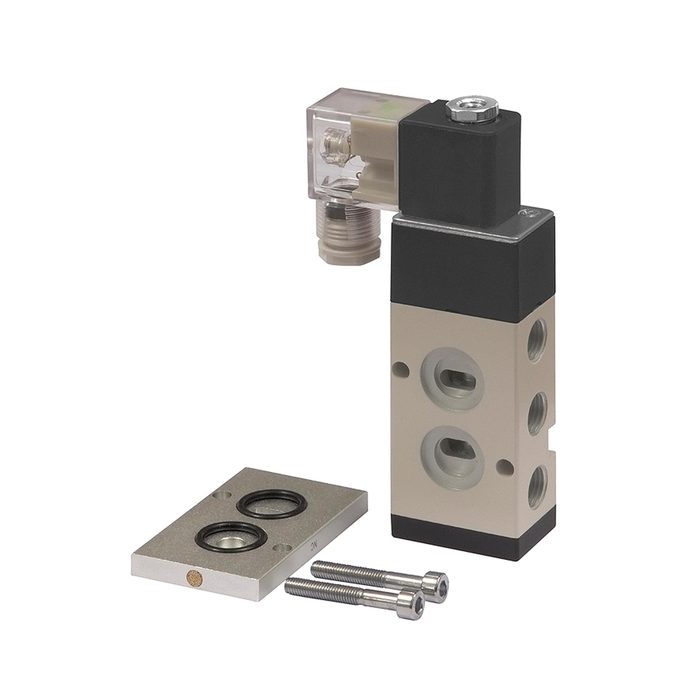

![[130277] RIEGLER 3/2-5/2-way valve NAMUR, G 1/4 (1), G 1/4 (3+5), 230 V, 50 Hz](/web/image/product.template/202584/image_128/%5B130277%5D%20RIEGLER%203-2-5-2-way%20valve%20NAMUR%2C%20G%201-4%20%281%29%2C%20G%201-4%20%283%2B5%29%2C%20230%20V%2C%2050%20Hz?unique=d4441e6)
![[130278] RIEGLER 3/2-5/2-way valve, NAMUR, G 1/4 (1), G 1/4 (3 + 5), 24 V DC](/web/image/product.template/202585/image_128/%5B130278%5D%20RIEGLER%203-2-5-2-way%20valve%2C%20NAMUR%2C%20G%201-4%20%281%29%2C%20G%201-4%20%283%20%2B%205%29%2C%2024%20V%20DC?unique=d4441e6)

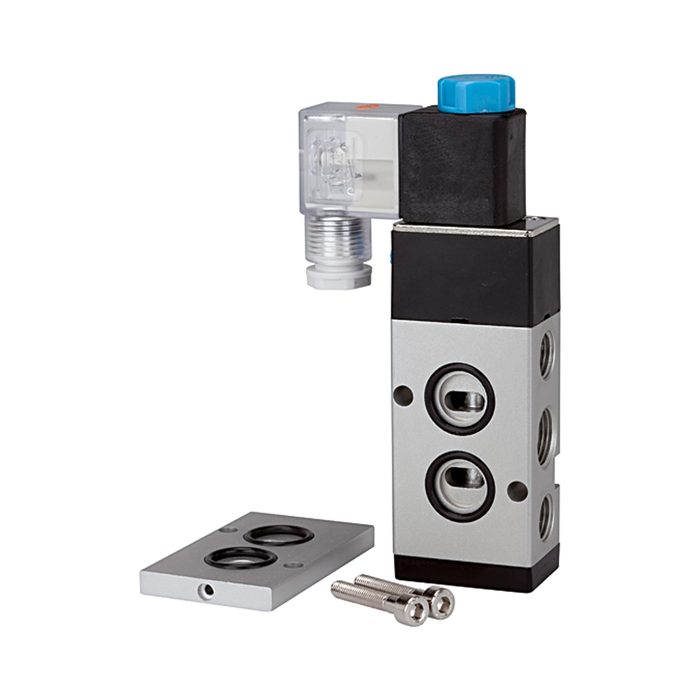

![[103651] RIEGLER 3/2-5/2-way valve NAMUR, G 3/8 (1), G 1/4 (3+5), 230 V, 50 Hz](/web/image/product.template/171613/image_128/%5B103651%5D%20RIEGLER%203-2-5-2-way%20valve%20NAMUR%2C%20G%203-8%20%281%29%2C%20G%201-4%20%283%2B5%29%2C%20230%20V%2C%2050%20Hz?unique=d4441e6)
