RIEGLER Bushing - locking pusher, Stainless steel 1.4401/1.4408, G 1 1/4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

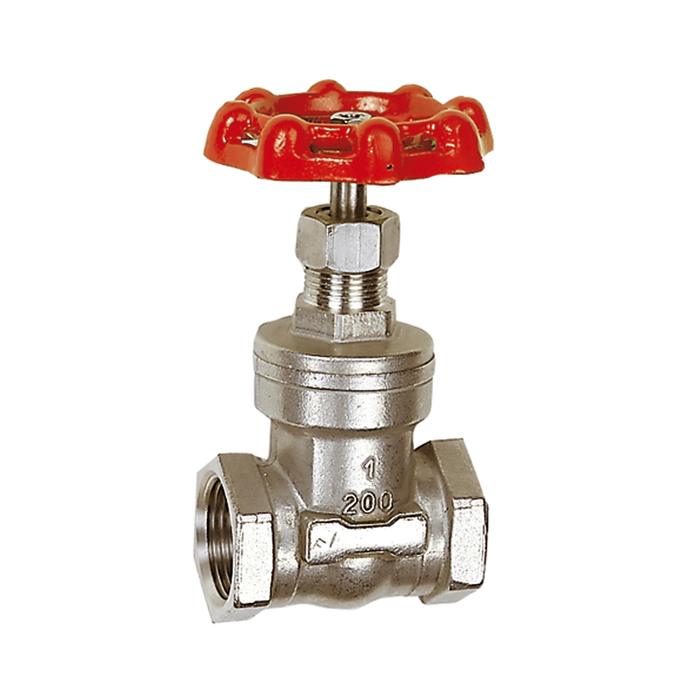

RIEGLER Socket gate valve made of stainless steel 1.4401 / 1.4408, for industrial systems, max. 14 bar - Type 250.37 ES
The RIEGLER sleeve gate valve, stainless steel 1.4401/1.4408, G 1 1/4 regulates or shuts off the flow of media in industrial pipelines. The body is made of stainless steel 1.4401 / 1.4408 with PTFE seals. Designed for a maximum operating pressure of 14 bar. The operating temperature is between -10 °C and 80 °C. Connection thread G 1 1/4 - suitable for common industry standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Housing | Stainless steel 1.4401 / 1.4408 |
| Sealing material | PTFE |
| Max. operating pressure | 14 bar |
| Medium temperature max. | 160 °C |
| Ambient temperature max. | 160 °C |
| Interior parts | Stainless steel 1.4401 / 1.4408 |
| Handwheel | Aluminum |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 80 °C |
| Thread | G 1 1/4 |
| DN | 32 |
| A | 80 mm |
| B | 130 mm |
| L | 75 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
