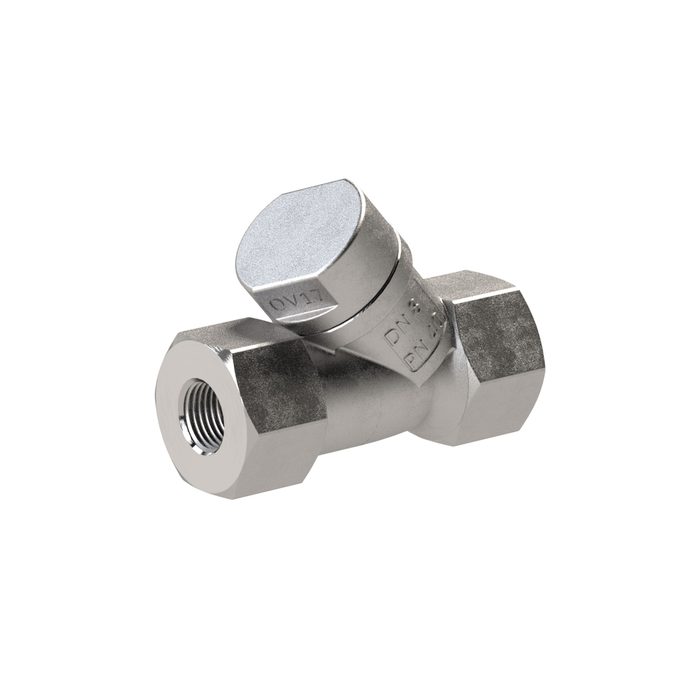

RIEGLER Check valve inclined seat design stainless steel, G 1, 0.2 bar
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Check valve made of stainless steel 1.4401 / 1.4408, for industrial systems, max. 40 bar - Type 220.05-ES
The RIEGLER non-return valve, angle seat design, ES, G 1, 0.2 bar regulates or blocks the flow of media in industrial pipelines. The housing is made of stainless steel 1.4401 / 1.4408 with FKM seals. Designed for a maximum operating pressure of 40 bar. The operating temperature is between -10 °C and 230 °C. Connection thread G 1 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Housing | Stainless steel 1.4401 / 1.4408 |
| Sealing material | FKM |
| Max. operating pressure | 40 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 230 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 230 °C |
| Opening pressure min. | 0.2 bar |
| Interior parts | Stainless steel 1.4401 / 1.4408 |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 230 °C |
| Thread | G 1 |
| SW | 40 mm |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| B | 82 mm |
| L | 90 mm |
| Class name | STAINLESS STEEL |
