RIEGLER High performance safety valve, G 1, Trigger pressure 0.9 bar

Price:

268.67 €

English (US)
  2. Shop
  3. Safety Valves & Pressure Relief Valves
  4. RIEGLER High performance safety valve, G 1, Trigger pressure 0.9 bar

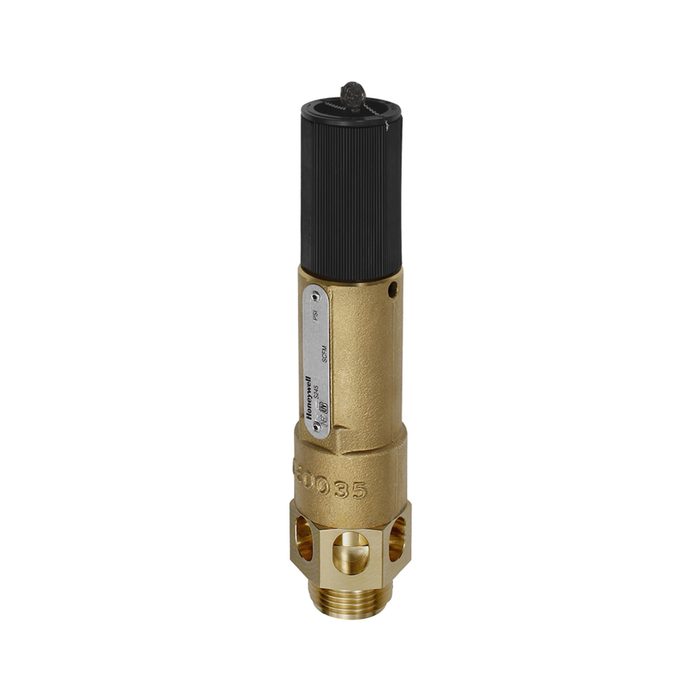

RIEGLER High performance safety valve, G 1, Trigger pressure 1.5 bar
RIEGLER High performance safety valve, G 1, Trigger pressure 1.5 bar
269.92 € 269.92 €
RIEGLER High performance safety valve, G 1, Trigger pressure 0.8 bar
RIEGLER High performance safety valve, G 1, Trigger pressure 0.8 bar
268.67 € 268.67 €

RIEGLER High performance safety valve, G 1, Trigger pressure 0.9 bar

https://staging-filcom-16.laminfra.de/web/image/product.template/173164/image_1920?unique=d4441e6

268.67 € 268.67 EUR 268.67 € VAT Included

225.77 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

105216

EAN :

4047322018098

Category :

Safety Valves & Pressure Relief Valves

Weight :

0.94 kg

RIEGLER High-performance safety valve made of brass, for industrial systems, max. 30 bar - Type 1144.03-0.9

The RIEGLER high-performance safety valve, MS, G 1, set pressure 0.9 bar reliably protects compressed air systems and containers against impermissible overpressure. The housing is made of brass. The operating pressure range is 0.5 bar to 30 bar. Connection thread G 1 - suitable for common industry standards. Reliable overpressure protection for safe systems.

Field of application

Typical areas of application: Pressure vessels, compressor systems and piping systems.

Housing Brass
Operating pressure min. 0.5 bar
Max. operating pressure 30 bar
Spring cover Brass
Operating temperature max. 260 °C
Thread G 1
SW 41 mm
Response pressure min. 0.9 bar
A 16 mm
H 185 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
do 20 mm
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification none
Theme shop SAFETY
Class name MAX

Similar Products

Product Price

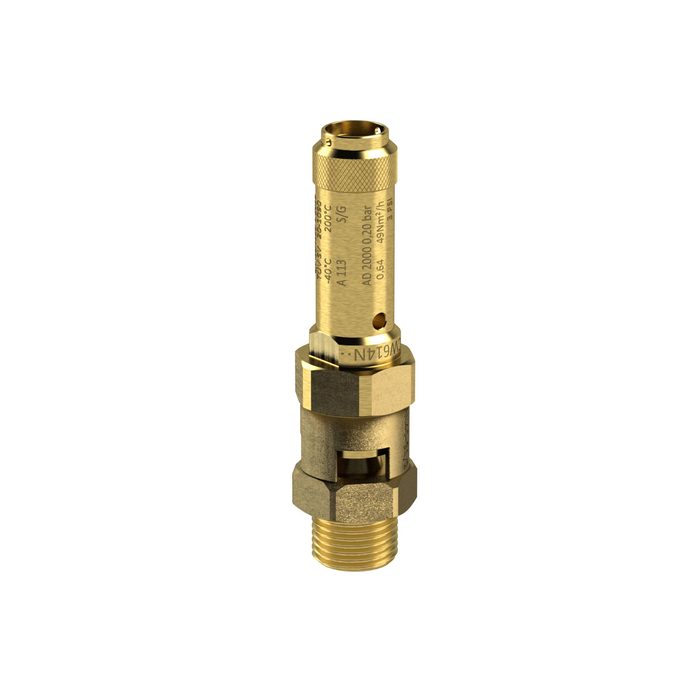

[104914] RIEGLER Safety valve, Brass, G 1, Trigger pressure 0.9 bar 166.61 €
