RIEGLER High performance safety valve, G 1, Trigger pressure 7 bar
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
105248EAN :
4047322018845Category :
Safety Valves & Pressure Relief ValvesWeight :
0.96 kgRIEGLER High-performance safety valve made of brass, for industrial systems, max. 30 bar - Type 1144.03-7,0
The RIEGLER high-performance safety valve, MS, G 1, response pressure 7 bar reliably protects compressed air systems and containers against impermissible overpressure. The housing is made of brass. The operating pressure range is 0.5 bar to 30 bar. Connection thread G 1 - suitable for common industry standards. Reliable overpressure protection for safe systems.
Field of application
Typical areas of application: Pressure vessels, compressor systems and piping systems.
| Housing | Brass |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 30 bar |
| Spring cover | Brass |
| Operating temperature max. | 260 °C |
| Thread | G 1 |
| SW | 41 mm |
| Response pressure min. | 7 bar |
| A | 16 mm |
| H | 185 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| do | 20 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | MAX |
Similar Products
| Product | Price | ||
|---|---|---|---|

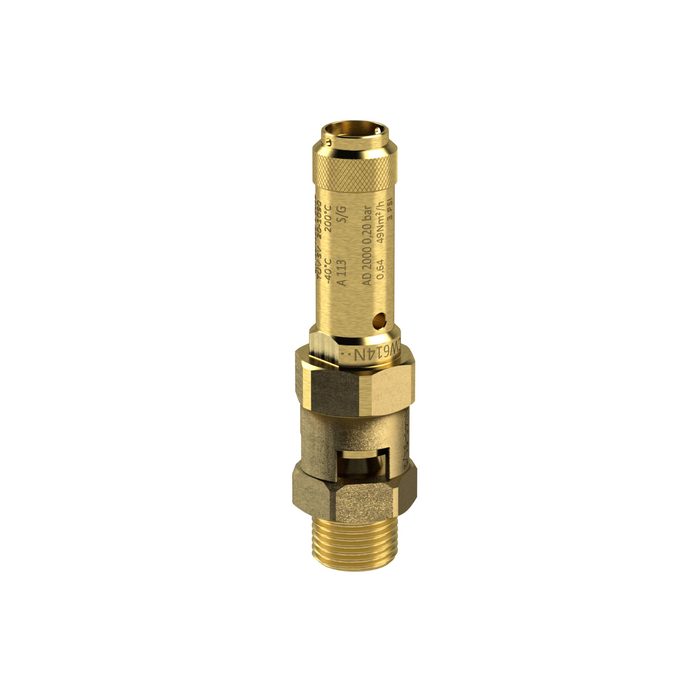

![[104939] RIEGLER Safety valve, Brass, G 1, Trigger pressure 7 bar](/web/image/product.template/172887/image_128/%5B104939%5D%20RIEGLER%20Safety%20valve%2C%20Brass%2C%20G%201%2C%20Trigger%20pressure%207%20bar?unique=d4441e6)
|
