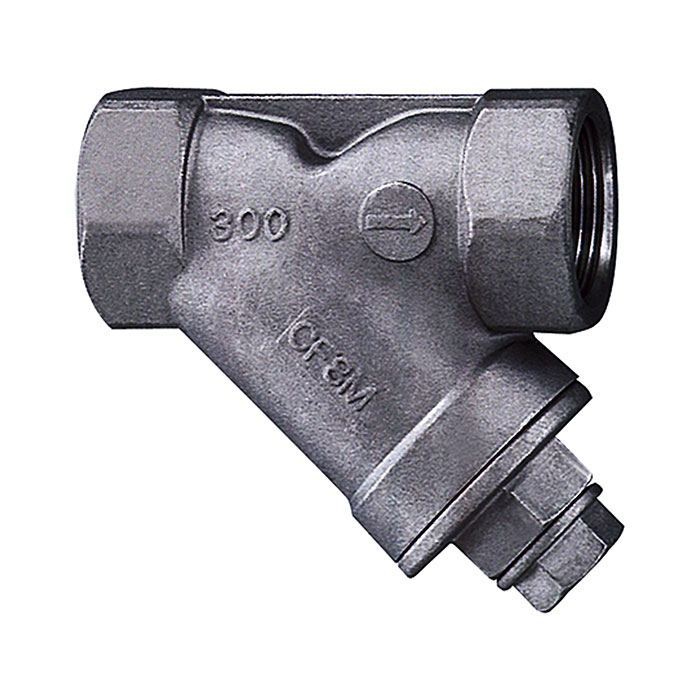

RIEGLER Dirt strainer, Stainless steel, G 1, DN 25
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Strainer made of stainless steel 1.4401 / 1.4408, for industrial systems, max. 40 bar - Type 60-5 ES
The RIEGLER strainer, stainless steel, MW 0.6 mm, G 1, DN 25 traps impurities in pipes and protects fittings. The housing is made of stainless steel 1.4401 / 1.4408 with PTFE seals. Designed for a maximum operating pressure of 40 bar. The operating temperature is between -20 °C and 180 °C. Connection thread G 1 (G thread to ISO 228-1) - suitable for common industry standards. Protection of downstream fittings.
Field of application
Typical areas of application: Piping systems.
| Housing | Stainless steel 1.4401 / 1.4408 |
| Sealing material | PTFE |
| Max. operating pressure | 40 bar |
| Medium temperature max. | 180 °C |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Head piece | Stainless steel 1.4401 / 1.4408 |
| Sieve insert | Stainless steel |
| Thread | G 1 |
| DN | 25 |
| SW 1 | 41 mm |
| SW 2 | 27 mm |
| Thread standard | G-thread according to ISO 228-1 |
| Mesh size | 0.6 mm |
| C | 71 mm |
| L | 90 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
