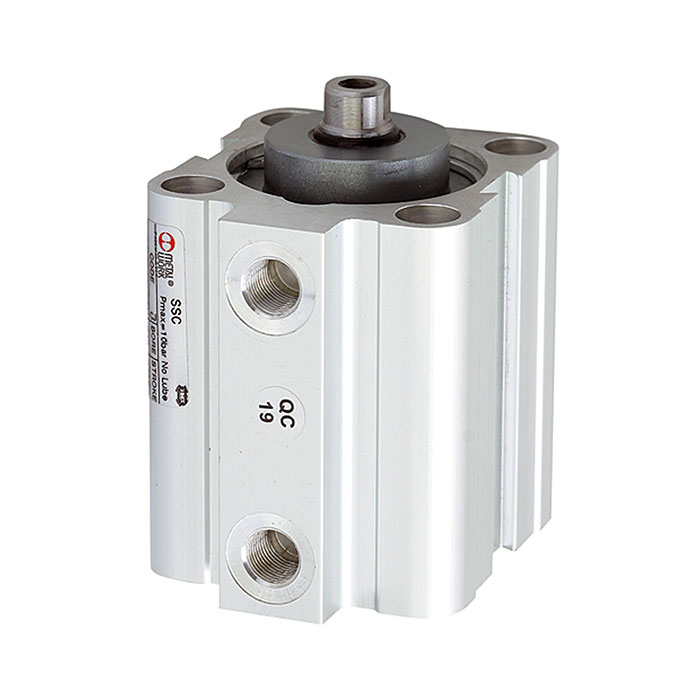

RIEGLER Short stroke cylinder, double-acting, Piston Ø 20, Stroke 10, M5
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Short-stroke cylinder for automation technology, max. 10 bar, M5 - Type 3.DM.20010
The RIEGLER short-stroke cylinder, double-acting, solenoid, piston Ø 20, stroke 10, M5 offers compact pneumatic drive solutions for confined installation spaces. Designed for a maximum operating pressure of 10 bar. The temperature range extends between -10 °C and 80 °C. M5 connection thread - suitable for common industry standards. With piston Ø 20 mm, stroke 10 mm, C45 steel piston rod, hard chrome-plated - for powerful linear actuator solutions. Space-saving design for confined installation spaces.
Field of application
Typical areas of application: Compact systems, special machine construction and handling systems.
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Working pressure max. | 10 bar |
| Pipe | Aluminium alloy, anodized |
| Piston rod seal | NBR (PU and FKM at extra charge) |
| Piston seal | NBR (PU and FKM at extra charge) |
| Piston Ø | 20 mm |
| Function | double-acting |
| Response pressure min. | 0.6 bar |
| Stroke | 10 mm |
| Piston rods IG | M5 |
| Connection | M5 |
| Piston rod | C45 steel, hard chrome-plated |
| Head | Lacquered brass |
| Piston | Acetal synthetic resin |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
