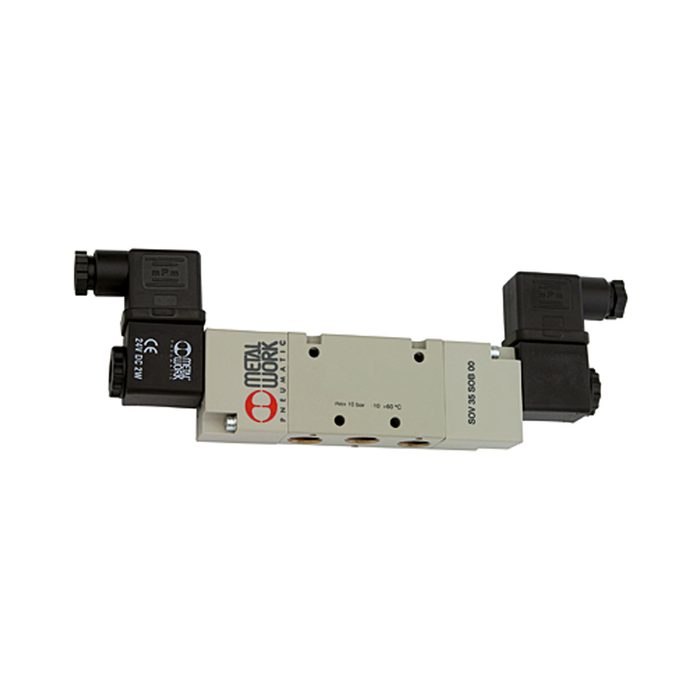

RIEGLER 5/2-way valve, electropneum., bistable, G 1/4, DN 7.5, 24 V DC

https://staging-filcom-16.laminfra.de/web/image/product.template/175610/image_1920?unique=d4441e6

147.85 € 147.85 EUR 147.85 € VAT Included

124.24 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

106553

EAN :

4047322097628

Category :

Valves Electropneumatically Operated

Weight :

0.37 kg

RIEGLER 5/2-way valve for pneumatic control, max. 10 bar, G 1/4 - Type 517.212

The RIEGLER 5/2-way valve, electropneumatic, bistable, G 1/4, 24 V DC controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is 1 bar to 10 bar. The permissible medium temperature is between -10 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. The flow rate is 1100 Nl/min. Operating voltage 24 V DC. Precise directional control for defined movement sequences.

Field of application

Typical areas of application: Pneumatic controls and mechanical engineering.

Medium Filtered compressed air with or without lubrication. If lubricated, then continuous.
Sealing material NBR
Series Valves Series 70
Operating pressure min. 1 bar
Max. operating pressure 10 bar
Medium temperature min. -10 °C
Medium temperature max. 60 °C
Ambient temperature min. -10 °C
Ambient temperature max. 50 °C
Manual override resting
DN 45419
Function 5/2
Actuation bistable
Symbol 36
Tension 24 V DC
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
Connection G 1/4
RoHS material information RoHS compliant
Flow rate 750 Nl/min
Flow rate 1100 Nl/min
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Exception 6b
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification AA-6026
Flow rate measurement 1 Flow rate at 6 bar and Δp 0.5 bar
Flow rate measurement 2 Flow rate at 6 bar and Δp 1.0 bar
Class name PLUS
