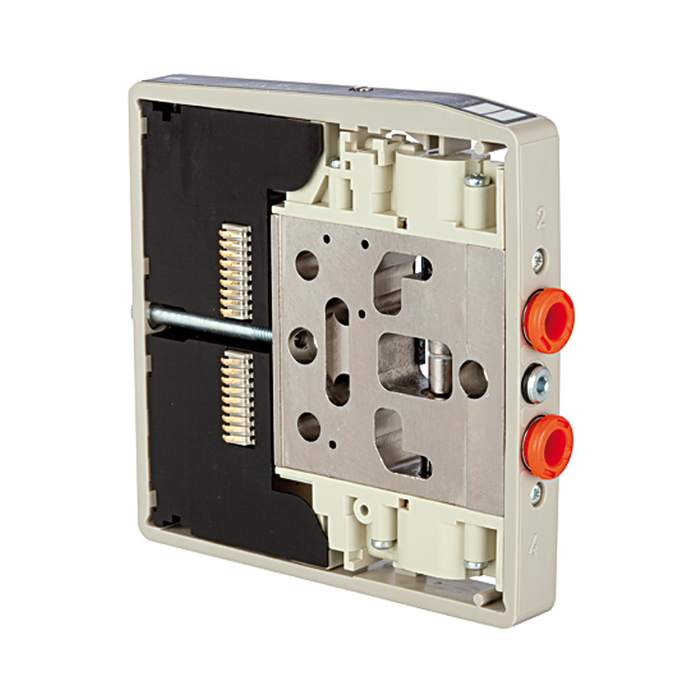

RIEGLER Valve disc HDM Connection 6 mm 3/2 monost. NC or NO
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Valve disc HDM made of aluminum, for pneumatic control - type L 6
The RIEGLER valve disk HDM, connection 6 mm, 3/2-way monostable NC and NO combines several pneumatic valves on a common base plate. The housing is made of aluminum. The temperature range is between -10 °C and 60 °C. The flow rate is 500 Nl/min. Power consumption 0.6 W per actuation, protection class IP 65. Central valve control with minimum installation effort.
Field of application
Typical areas of application: Automation systems, packaging machines and robotics.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Power consumption | 0.6 W per actuation |
| Protection class | IP 65 |
| Material | Aluminum |
| Control | up to 16 actuations (e.g. 16 spring-return valves) |
| Manual override | resting |
| Function | 3/2-way, NC, monostable and 3/2-way, NO, monostable |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Flow rate | 500 Nl/min |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
