RIEGLER Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, Hose 5x3
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Quick-release coupling made of stainless steel 1.4404, for compressed air supply - Type 243.08/8-ES
The RIEGLER quick-release coupling NW 2.7, ES 1.4404, hose connection 5x3 connects and disconnects compressed air lines with a single movement - automatic sealing when disconnecting. The housing is made of stainless steel 1.4404 with FKM seals. The permissible medium temperature is between -15 °C and 200 °C. Connection thread hose connection 5x3 - suitable for common industry standards. The flow rate is 165 l/min (air) (at 6 bar and Δp = 0.5 bar). Connects and disconnects in seconds without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Stainless steel 1.4404 |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -15 °C |
| Ambient temperature max. | 200 °C |
| Flow rate | 165 l/min (air) |
| Ball | Stainless steel 1.4404 |
| Spring | Stainless steel 1.4404 |
| Valve body | Stainless steel 1.4404 |
| Sleeve | Stainless steel 1.4404 |
| Snap ring | Stainless steel 1.4404 |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| SW | 9 mm |
| NW | 2.7 |
| Length | 34 mm |
| Connection | Trouser connection 5x3 |
| Class name | STAINLESS STEEL |
![[107113] RIEGLER Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, Hose 4x3](/web/image/product.template/176170/image_128/%5B107113%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%202.7%2C%20Stainless%20steel%201.4404%2C%20Hose%204x3?unique=d4441e6)

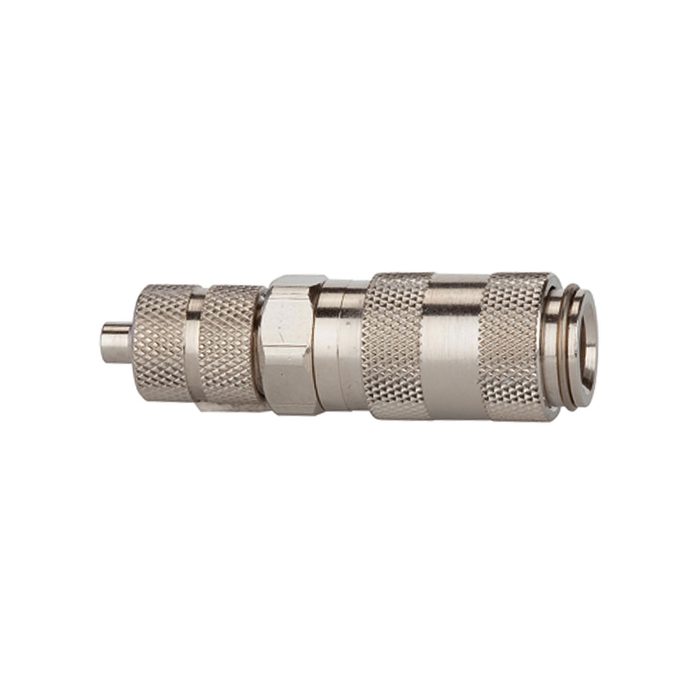

![[107115] RIEGLER Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, Hose 6x4](/web/image/product.template/176172/image_128/%5B107115%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%202.7%2C%20Stainless%20steel%201.4404%2C%20Hose%206x4?unique=d4441e6)
