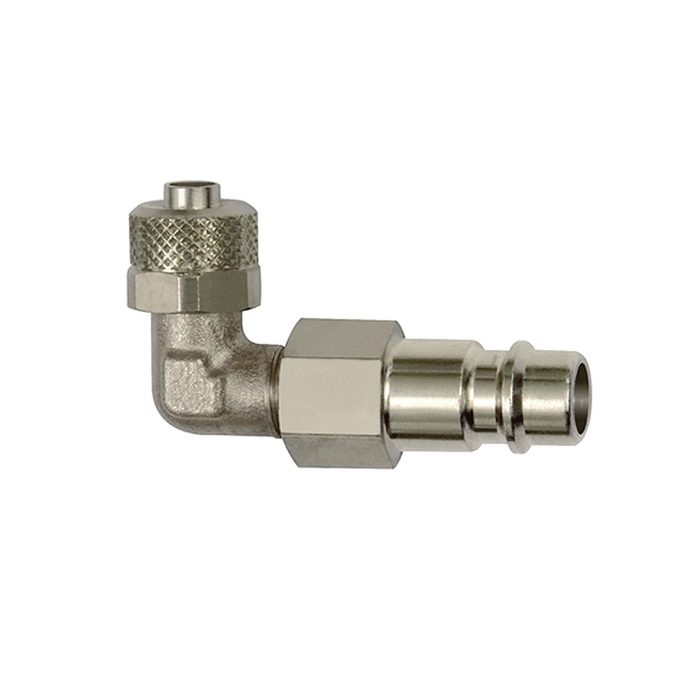

RIEGLER Plug-in angle for I.D. 7.2-7.8, nickel-plated brass, for hose 8x6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Insertion angle for couplings for hose 8x6 - Type 243.761
The RIEGLER insertion bracket for coupling NW 7.2-7.8, MS nickel-plated, for hose 8x6 establishes the connection between the compressed air hose and the quick coupling. Connection thread for 8x6 hose - suitable for common industry standards. Simply plug in - secure, tight connection.
Field of application
Typical areas of application: Compressed air coupling systems.
| Height | 27 mm |
| Width | 48 mm |
| NW | 7,2 - 7,8 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | for hose 8x6 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
