RIEGLER GEKA spray nozzle with hose connector, bright brass, I.D. 13
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER GEKA spray nozzle with hose nozzle for compressed air supply, max. 40 bar, LW 13 - type K 701
The RIEGLER GEKA spray nozzle with hose nozzle, blank brass, LW 13 connects water and compressed air hoses according to the GEKA system. with NBR seals. Designed for a maximum operating pressure of 40 bar. The permissible medium temperature is between -10 °C and 90 °C. Connection thread LW 13 - suitable for common industry standards. Proven system with universal compatibility.
Field of application
Typical areas of application: Garden, construction site, agriculture and industry.
| Sealing material | NBR |
| Max. operating pressure | 40 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 90 °C |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | LW 13 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |

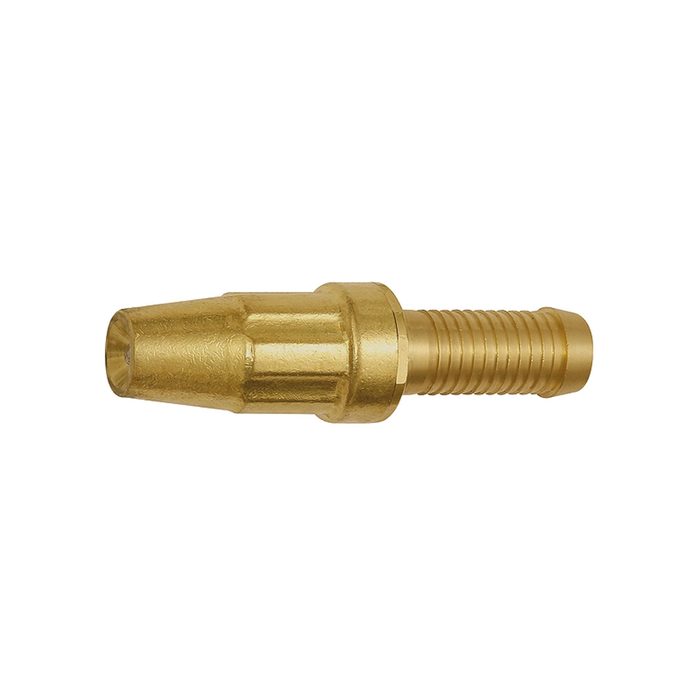

![[107799] RIEGLER GEKA spray nozzle with hose connector, bright brass, I.D. 19](/web/image/product.template/191700/image_128/%5B107799%5D%20RIEGLER%20GEKA%20spray%20nozzle%20with%20hose%20connector%2C%20bright%20brass%2C%20I.D.%2019?unique=d4441e6)
