RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 63, for plug Ø 76
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108031EAN :
4047322403092Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.50 kgRIEGLER Kamlok quick coupling socket for compressed air supply, max. 16 bar - type 1112.212
The RIEGLER Kamlok quick coupling socket, type C, aluminum, LW 63, for plug Ø 76 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 68 °C. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| for inner hose Ø | 63 |
| for plug Ø | 76 mm |
| A | 109.5 mm |
| C | 142.4 mm |
| Class name | FLEX |
Similar Products
| Product | Price | ||
|---|---|---|---|
![[108033] RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 100, for plug Ø120](/web/image/product.template/191931/image_128/%5B108033%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%2C%20C%20type%2C%20Alu%2C%20I.D.%20100%2C%20for%20plug%20%C3%98120?unique=d4441e6)
|
35.63 € | ||

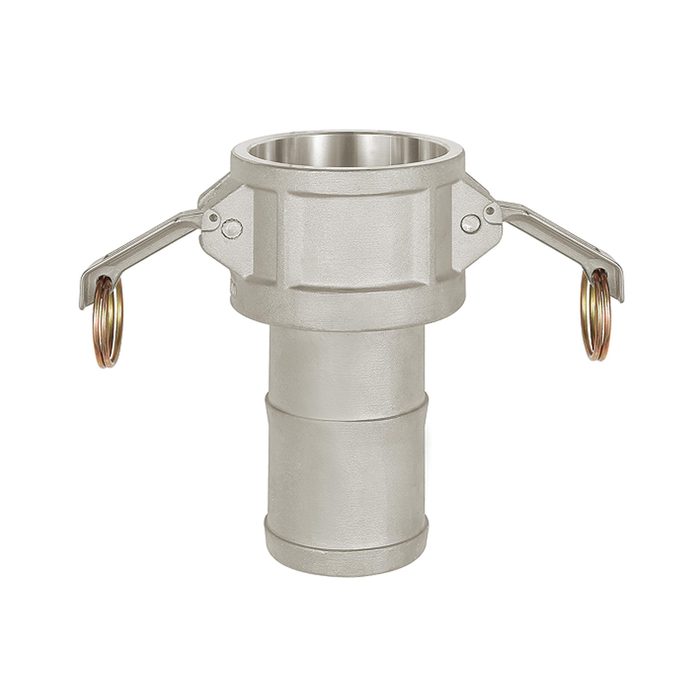

![[108026] RIEGLER Kamlok quick-connect socket, C type, Alu, I.D. 19, for plug Ø 32](/web/image/product.template/191924/image_128/%5B108026%5D%20RIEGLER%20Kamlok%20quick-connect%20socket%2C%20C%20type%2C%20Alu%2C%20I.D.%2019%2C%20for%20plug%20%C3%98%2032?unique=d4441e6)
|
