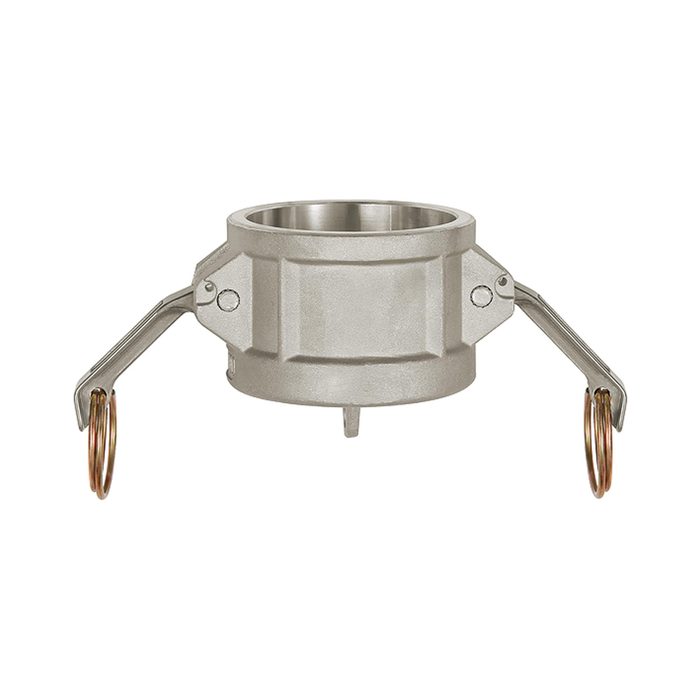

RIEGLER Kamlok closing cap, DC type, Aluminium, Size 1 1/2, for plug Ø 53
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108053EAN :
4047322403368Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.24 kgRIEGLER Kamlok sealing cap for compressed air supply, max. 16 bar - Type 1115.112
The RIEGLER Kamlok sealing cap, type DC, aluminum, BG 1 1/2, for plug Ø 53 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 68 °C. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| for plug Ø | 53 mm |
| BG | 1,5 |
| A | 87.4 mm |
| C | 62 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
