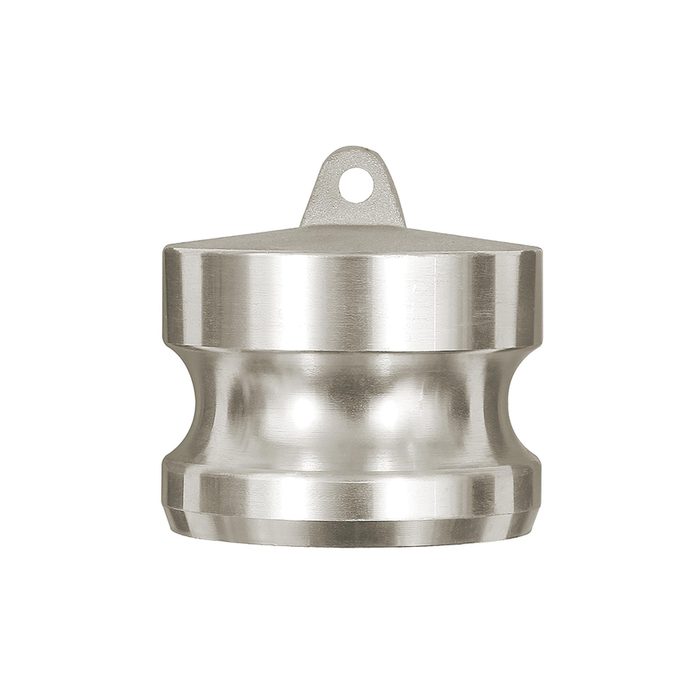

RIEGLER Kamlok cap plug, DP type, Aluminium, Size 3, Plug Ø 92
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
108088EAN :
4047322403764Category :
KAMLOK Hose Couplings & AccessoriesWeight :
0.30 kgRIEGLER Kamlok plug for compressed air supply, max. 16 bar - Type 1119.30
The RIEGLER Kamlok plug, type DP, aluminum, BG 3, plug Ø 92 enables quick connection according to the Kamlock system. with NBR seals, oil and petrol resistant. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 68 °C. Quick coupling for a wide range of media.
Field of application
Typical areas of application: Chemicals, tank technology and food industry.
| Temperature range min. | -20 °C |
| Temperature range max. | 68 °C |
| Sealing material | NBR, oil and petrol resistant |
| Max. operating pressure | 16 bar |
| BG | 3 |
| Plug Ø | 92 mm |
| A | 91.4 mm |
| C | 67.5 mm |
| Class name | FLEX |
