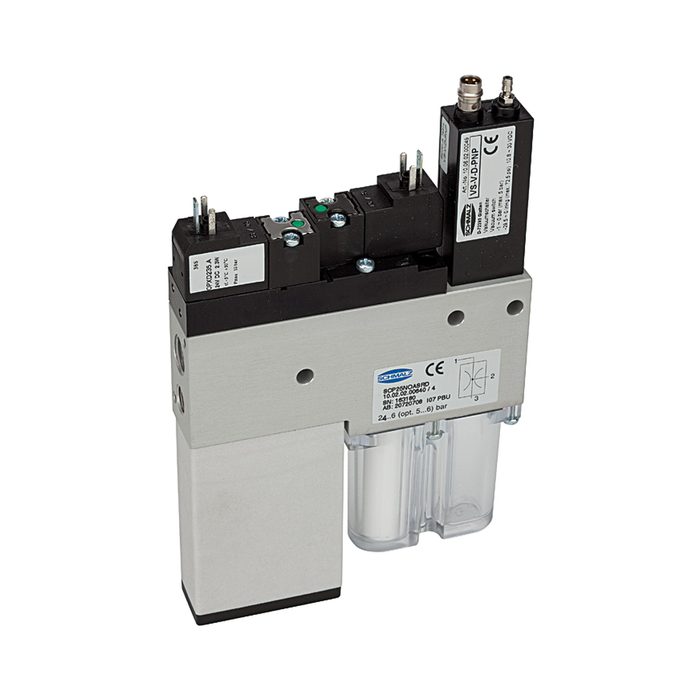

RIEGLER Compact ejector »CP« Air block control, Nozzle size 1.5 mm
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Compact ejector "CP" Air-saving control for vacuum technology, max. 5 bar - Type CP 151
The RIEGLER compact ejector "CP" air-saving control, nozzle size 1.5 mm, NC generates or uses vacuum for handling and automation tasks. Designed for a maximum operating pressure of 5 bar. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Max. operating pressure | 5 bar |
| Base body | Anodized aluminum |
| Integrated | NC blow-off valve, filter, silencer, non-return valve |
| Height | 164 mm |
| Width | 20 mm |
| Length | 72 mm |
| Nozzle size | 1.5 mm |
| Compressed air connection | G 1/8 FEMALE THREAD |
| Vacuum connection | G 1/8 FEMALE THREAD |
| Rest position suction valve | NC |
| Suction capacity max. | 65 l/min |
| Air consumption suction | 117 l/min |
| Weight | 275 g |
| Class name | MAX |
