RIEGLER Flat suction cup, round, Material NBR, »PFG« ø: 50 mm

Price:

4.86 €

English (US)
  2. Shop
  3. Suction Pads
  4. RIEGLER Flat suction cup, round, Material NBR, »PFG« ø: 50 mm
RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 800, G 1/8
RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 800, G 1/8
171.03 € 171.03 €
RIEGLER Bellows suction cup, Round 1.5 folds, Silicone material, FGA ø33
RIEGLER Bellows suction cup, Round 1.5 folds, Silicone material, FGA ø33
11.40 € 11.40 €

RIEGLER Flat suction cup, round, Material NBR, »PFG« ø: 50 mm

https://staging-filcom-16.laminfra.de/web/image/product.template/192340/image_1920?unique=d4441e6

4.86 € 4.86 EUR 4.86 € VAT Included

4.08 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

108443

EAN :

4047322203173

Category :

Suction Pads

Weight :

0.01 kg

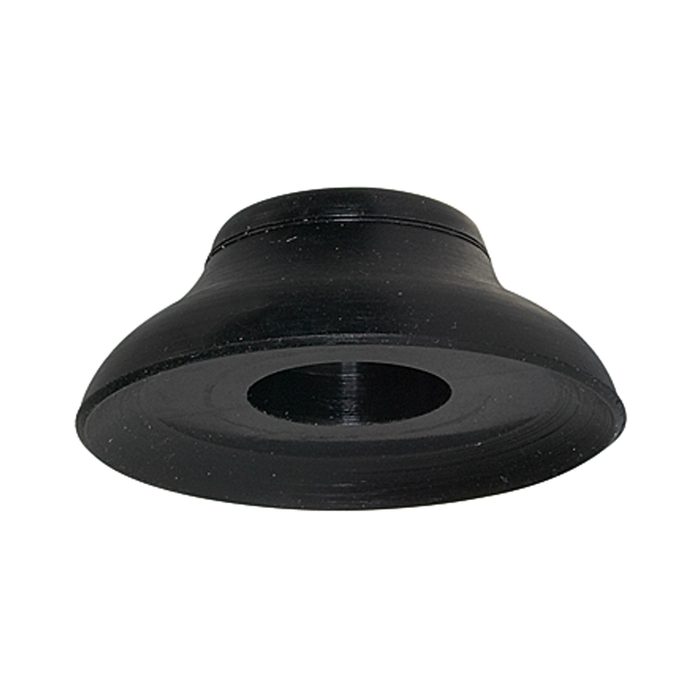

RIEGLER Round flat suction cup for vacuum technology - type PFG 1050-1

The RIEGLER flat suction cup round, PFG ø:50 mm, NBR lifts and transports workpieces safely by vacuum. Suction force 91 N. Gentle workpiece handling without mechanical clamping.

Field of application

Typical areas of application: Robotics, packaging technology and automated handling.

Diameter 50 mm
Suitable connection nipple IG G 1/8
Suitable connection nipple AG G 1/8
Overall height with nipple IG 31.0 mm
Overall height with nipple AG 20.0 mm
Suction power 91 N
Volume 7 cm³
Workpiece radius convex min. 75 mm
Recommended hose Ø 4 mm

Accessory Products

Product Price

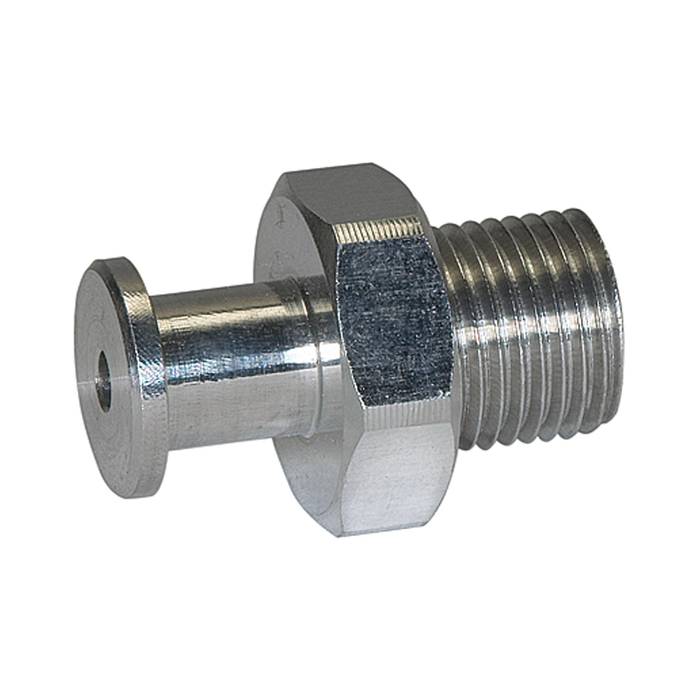

[108465] RIEGLER Connection nipple for flat suction cup round »PFG«, G1/8 ET, Ø 50 4.12 €

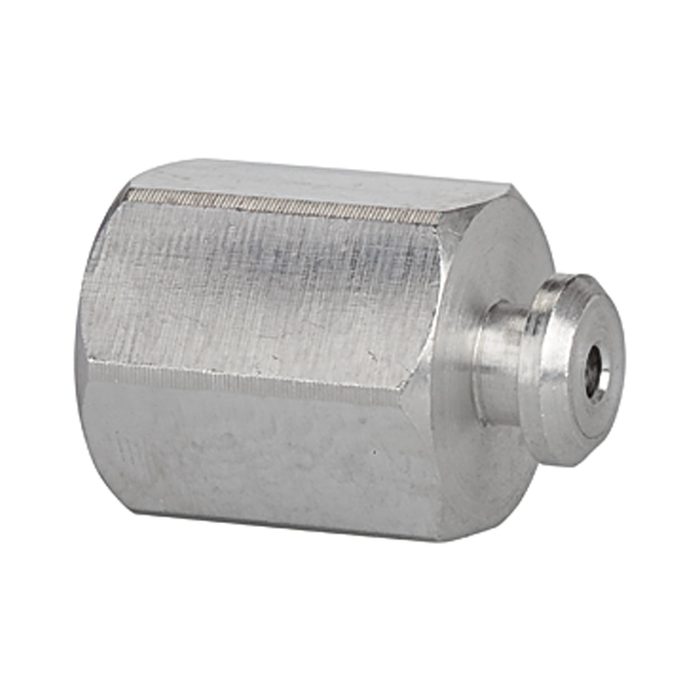

[108472] RIEGLER Connection nipple for flat suction cup round »PFG«, G 1/8 IT Ø50 4.09 €
