RIEGLER Flat suction cup, round, Silicone material, »PFG«
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

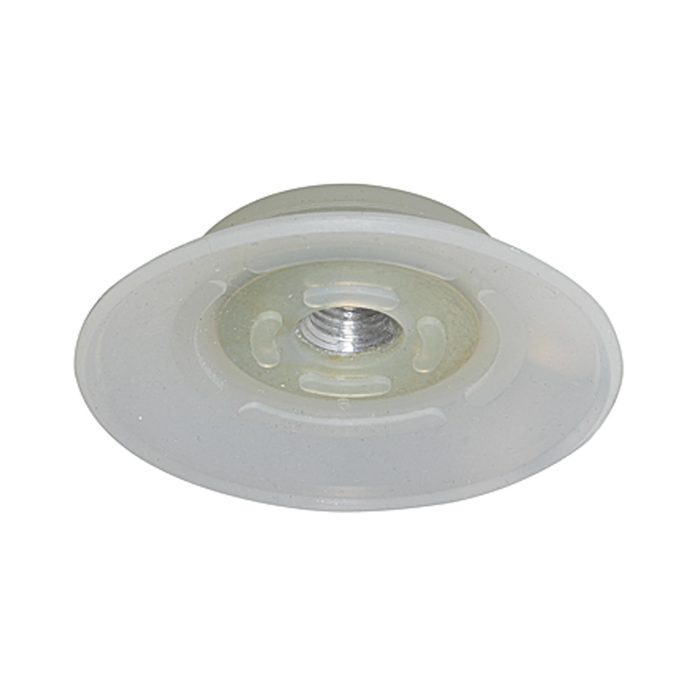

RIEGLER Round flat suction cup for vacuum technology - type PFG 1020-2
The RIEGLER flat suction cup round, PFG ø: 20 mm, silicone lifts and transports workpieces safely by vacuum. Suction force 15.5 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 20 mm |
| Suitable connection nipple IG | G 1/8 |
| Suitable connection nipple AG | G 1/8 |
| Overall height with nipple IG | 26.0 mm |
| Overall height with nipple AG | 15.0 mm |
| Suction power | 15.5 N |
| Volume | 0.8 cm³ |
| Workpiece radius convex min. | 20 mm |
| Recommended hose Ø | 4 mm |

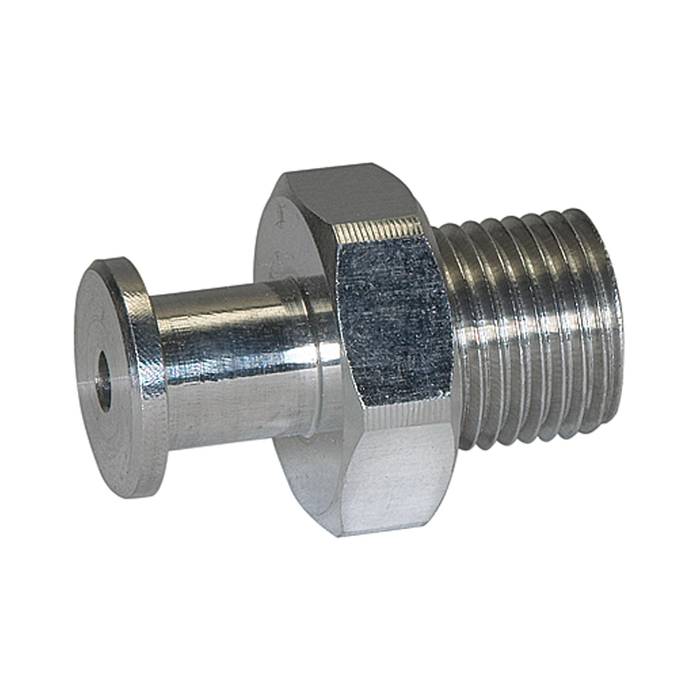

![[108463] RIEGLER Connection nipple for flat suction cup round »PFG«, G1/8 ET, Ø 20](/web/image/product.template/192360/image_128/%5B108463%5D%20RIEGLER%20Connection%20nipple%20for%20flat%20suction%20cup%20round%20%C2%BBPFG%C2%AB%2C%20G1-8%20ET%2C%20%C3%98%2020?unique=d4441e6)

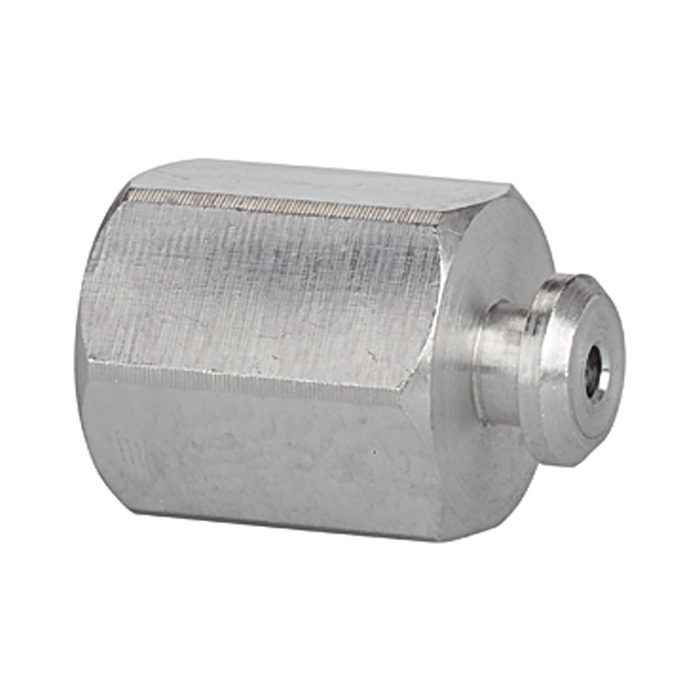

![[108470] RIEGLER Connection nipple for flat suction cup round »PFG«, G 1/8 IT Ø20](/web/image/product.template/192367/image_128/%5B108470%5D%20RIEGLER%20Connection%20nipple%20for%20flat%20suction%20cup%20round%20%C2%BBPFG%C2%AB%2C%20G%201-8%20IT%20%C3%9820?unique=d4441e6)
