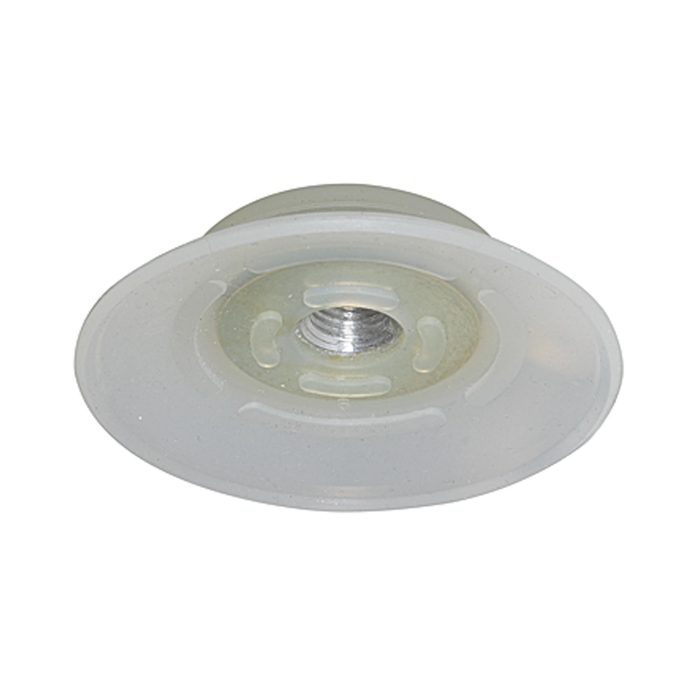

RIEGLER Flat suction cup, round, Silicone material, »PFG«
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Round flat suction cup for vacuum technology - type PFG 1025-2
The RIEGLER flat suction cup round, PFG ø: 25 mm, silicone lifts and transports workpieces safely by vacuum. Suction force 26.5 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 25 mm |
| Suitable connection nipple IG | G 1/8 |
| Suitable connection nipple AG | G 1/8 |
| Overall height with nipple IG | 30.0 mm |
| Overall height with nipple AG | 19.0 mm |
| Suction power | 26.5 N |
| Volume | 1.3 cm³ |
| Workpiece radius convex min. | 25 mm |
| Recommended hose Ø | 4 mm |
