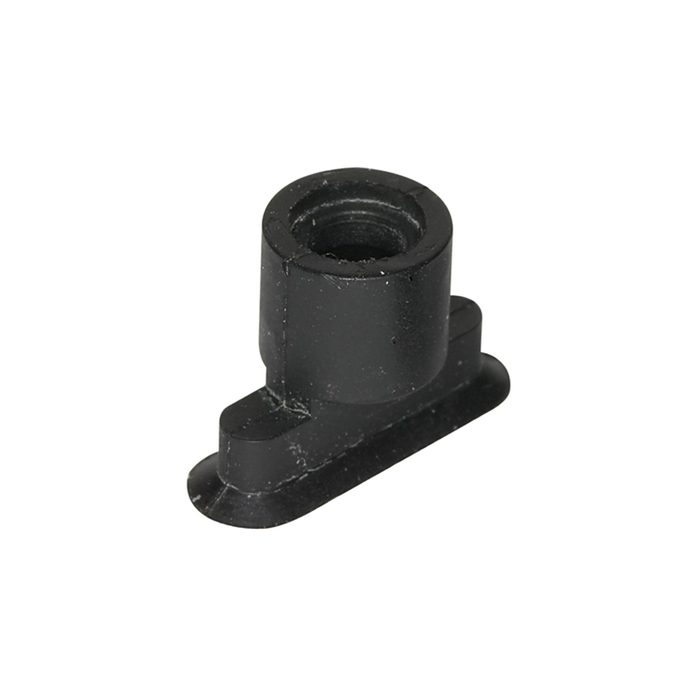

RIEGLER Flat suction cup, oval, Material NBR, »SGO« Ø30x10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Oval flat suction cup for vacuum technology - type SGO 3010-1
The RIEGLER flat suction cup oval, SGO ø: 30x10, NBR lifts and transports workpieces safely by vacuum. Suction force 12.2 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 30x10 mm |
| Suitable connection nipple IG | G 1/8 |
| Suitable connection nipple AG | G 1/8 |
| Overall height with nipple IG | 25.0 mm |
| Overall height with nipple AG | 17.0 mm |
| Suction power | 12.2 N |
| Volume | 0.28 cm³ |
| Workpiece radius convex min. | 8 mm |
| Recommended hose Ø | 4 mm |
Similar Products
| Product | Price | ||
|---|---|---|---|
![[108475] RIEGLER Flat suction cup, oval, Material NBR, »SGO« Ø15x5](/web/image/product.template/192372/image_128/%5B108475%5D%20RIEGLER%20Flat%20suction%20cup%2C%20oval%2C%20Material%20NBR%2C%20%C2%BBSGO%C2%AB%20%C3%9815x5?unique=d4441e6)
|
16.11 € | ||
![[108476] RIEGLER Flat suction cup, oval, Material NBR, »SGO« Ø18x6](/web/image/product.template/192373/image_128/%5B108476%5D%20RIEGLER%20Flat%20suction%20cup%2C%20oval%2C%20Material%20NBR%2C%20%C2%BBSGO%C2%AB%20%C3%9818x6?unique=d4441e6)
|
16.59 € | ||
![[108478] RIEGLER Flat suction cup, oval, Material NBR, »SGO« Ø45x15](/web/image/product.template/192375/image_128/%5B108478%5D%20RIEGLER%20Flat%20suction%20cup%2C%20oval%2C%20Material%20NBR%2C%20%C2%BBSGO%C2%AB%20%C3%9845x15?unique=d4441e6)
|
22.82 € | ||
![[108474] RIEGLER Flat suction cup, oval, Material NBR, »SGO« Ø7x3,5](/web/image/product.template/192371/image_128/%5B108474%5D%20RIEGLER%20Flat%20suction%20cup%2C%20oval%2C%20Material%20NBR%2C%20%C2%BBSGO%C2%AB%20%C3%987x3%2C5?unique=d4441e6)
|
5.28 € | ||

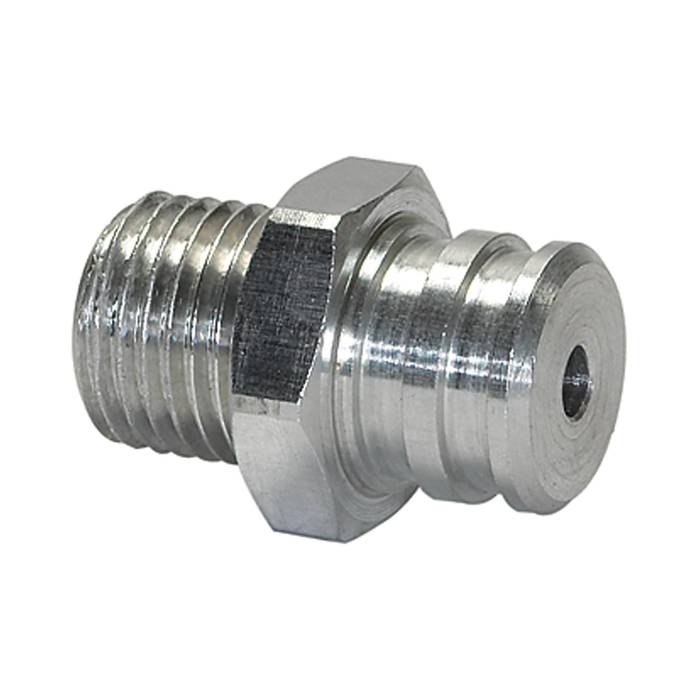

![[108485] RIEGLER Connection nipple for flat suction cup oval SGO G 1/8 ET Ø30x10](/web/image/product.template/192382/image_128/%5B108485%5D%20RIEGLER%20Connection%20nipple%20for%20flat%20suction%20cup%20oval%20SGO%20G%201-8%20ET%20%C3%9830x10?unique=d4441e6)

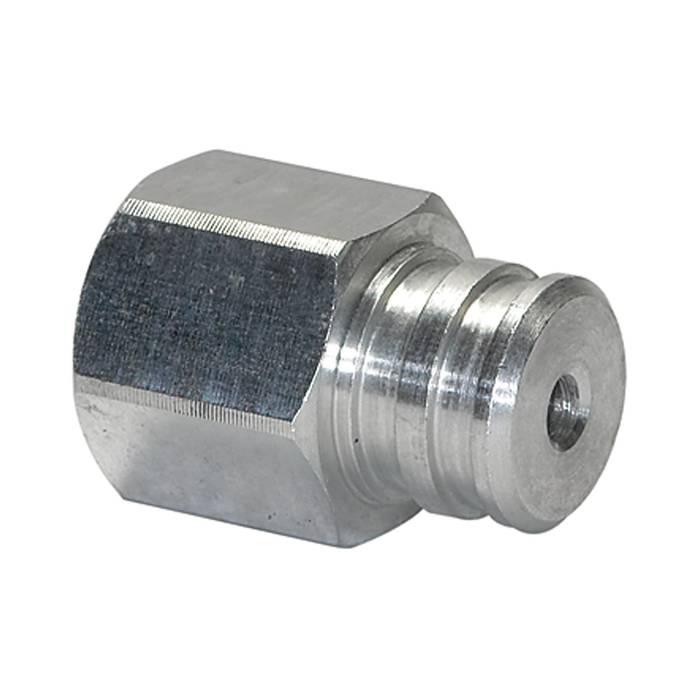

![[108488] RIEGLER Connection nipple for flat suction cup oval, SGO, G 1/8 IT Ø30x10](/web/image/product.template/192385/image_128/%5B108488%5D%20RIEGLER%20Connection%20nipple%20for%20flat%20suction%20cup%20oval%2C%20SGO%2C%20G%201-8%20IT%20%C3%9830x10?unique=d4441e6)
