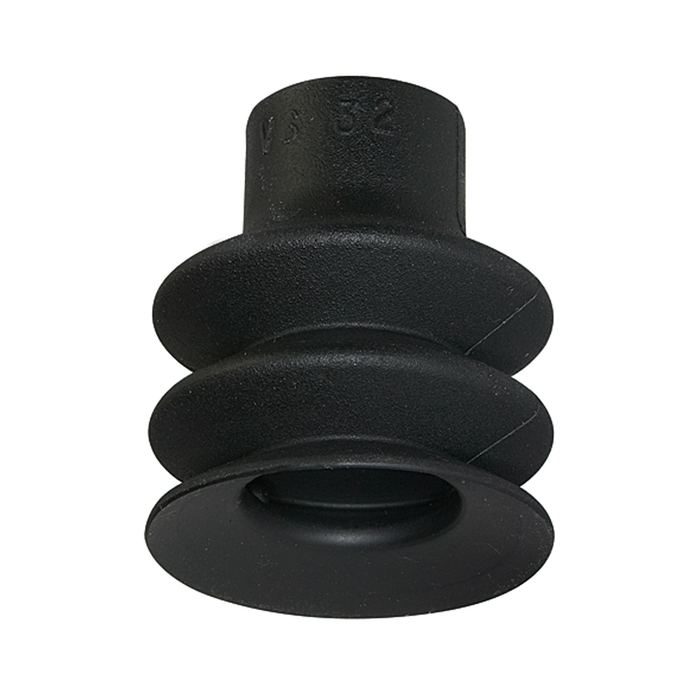

RIEGLER Bellows suction cup, Round 2.5 folds, Material NBR, »FG« Ø 14 mm
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Bellows suction cups for vacuum technology - Type FG 2514-1
The RIEGLER bellows suction cup, round 2.5 folds, material NBR, "FG", Ø 14 mm lifts and transports workpieces safely by vacuum. Suction force 1.2 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 14 mm |
| Suitable connection nipple IG | G 1/8 |
| Suitable connection nipple AG | M5 / G 1/8 |
| Overall height with nipple IG | 34.0 mm |
| Overall height with nipple AG | 27.0 / 28.0 mm |
| Suction power | 1.2 N |
| Volume | 0.975 cm³ |
| Workpiece radius convex min. | 15 mm |
| Recommended hose Ø | 4 mm |
| Tear-off force | 5.7 N |
