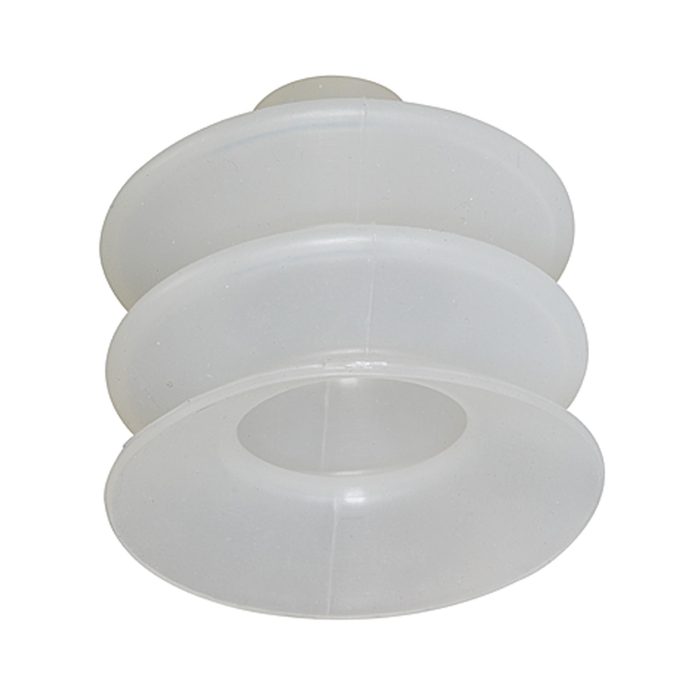

RIEGLER Bellows suction cup, Round 2.5 folds, Silicone material, FG Ø25mm
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Bellows suction cups for vacuum technology - Type FG 2525-2
The RIEGLER bellows suction cup, round 2.5 folds, material silicone, "FG", Ø 25 mm lifts and transports workpieces safely by vacuum. Suction force 4.5 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 25 mm |
| Suitable connection nipple IG | G 1/8 |
| Suitable connection nipple AG | G 1/8 |
| Overall height with nipple IG | 46.0 mm |
| Overall height with nipple AG | 40.0 mm |
| Suction power | 4.5 N |
| Volume | 5.4 cm³ |
| Workpiece radius convex min. | 30 mm |
| Recommended hose Ø | 4 mm |
| Tear-off force | 19 N |
