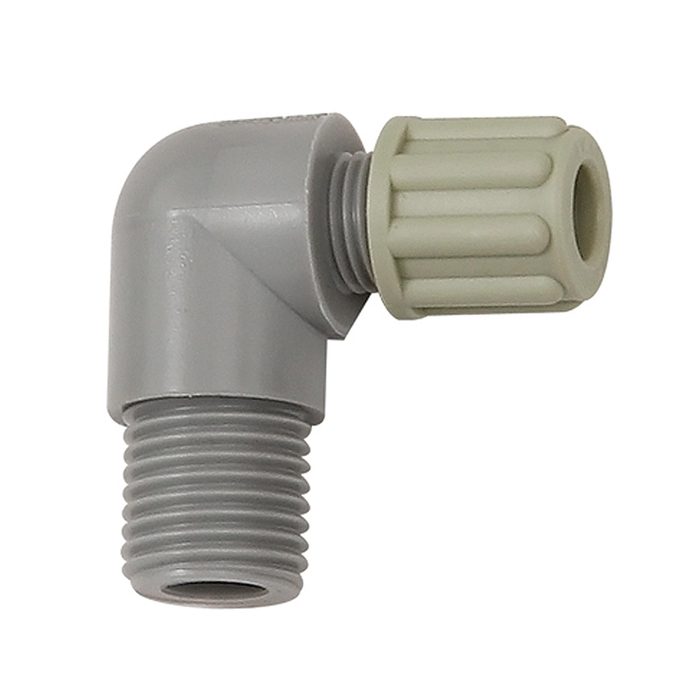

RIEGLER Angled screw-in fitting G 3/8 o., for hose 9/12 mm, PA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow screw-in fitting for pneumatic installation, G 3/8 - Type 140.74
The RIEGLER elbow screw-in fitting G 3/8 a., for hose 9/12 mm, PA connects compressed air hoses and pipes quickly and securely by simply screwing them in. Connection thread G 3/8 - suitable for common industry standards. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Screw fitting body | Polyamide (PA) |
| Clamping ring | Polypropylene (PP) |
| Knurled nut | Polypropylene (PP) |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 60 °C | 1 bar |
| Thread | G 3/8 |
| for hose | 9/12 mm |
| L1 | 40 mm |
| L2 | 31 mm |
| Class name | FLEX |
