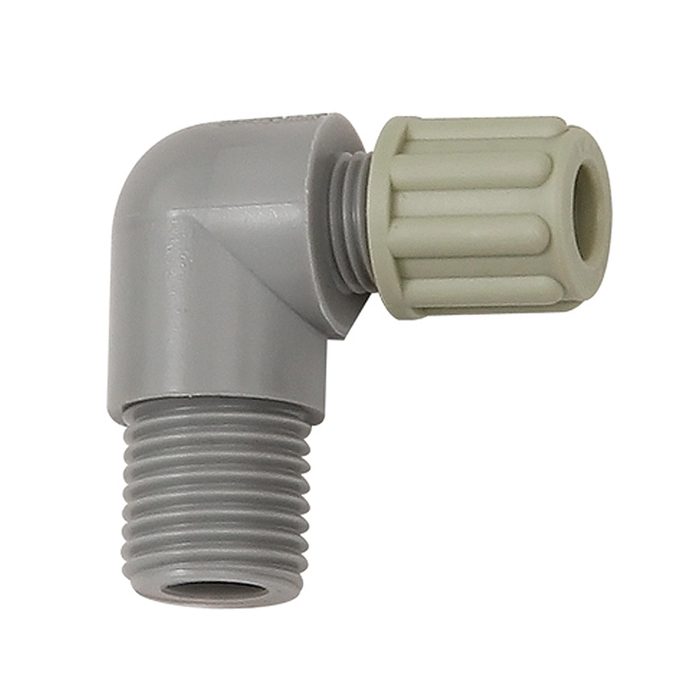

RIEGLER Angled screw-in fitting G 1/2 o., for hose 6/8 mm, PA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow screw-in fitting for pneumatic installation, G 1/2 - Type 140.82
The RIEGLER elbow screw-in fitting G 1/2 a., for 6/8 mm hose, PA connects compressed air hoses and pipes quickly and securely by simply screwing them in. Connection thread G 1/2 - suitable for common industry standards. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Screw fitting body | Polyamide (PA) |
| Clamping ring | Polypropylene (PP) |
| Knurled nut | Polypropylene (PP) |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 60 °C | 1 bar |
| Thread | G 1/2 |
| for hose | 6/8 mm |
| L1 | 36 mm |
| L2 | 29 mm |
| Class name | FLEX |
