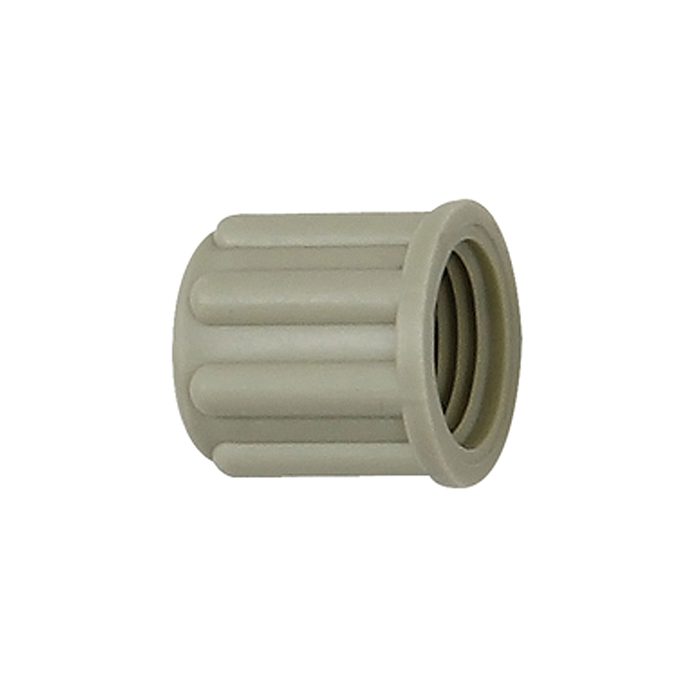

RIEGLER Knurled nut, M14x1.5, for hose 6/8 mm, PP
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Knurled nut for pneumatic installation, M14x1.5 - Type 160.02
The RIEGLER knurled nut, M14x1.5, for hose 6/8 mm, PP connects compressed air hoses and pipes quickly and securely by simply screwing them in. Connection thread M14x1.5 - suitable for common industry standards. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Screw fitting body | Polyamide (PA) |
| Clamping ring | Polypropylene (PP) |
| Knurled nut | Polypropylene (PP) |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 60 °C | 1 bar |
| Thread | M14x1.5 |
| for hose | 6/8 mm |
| L1 | 17 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
