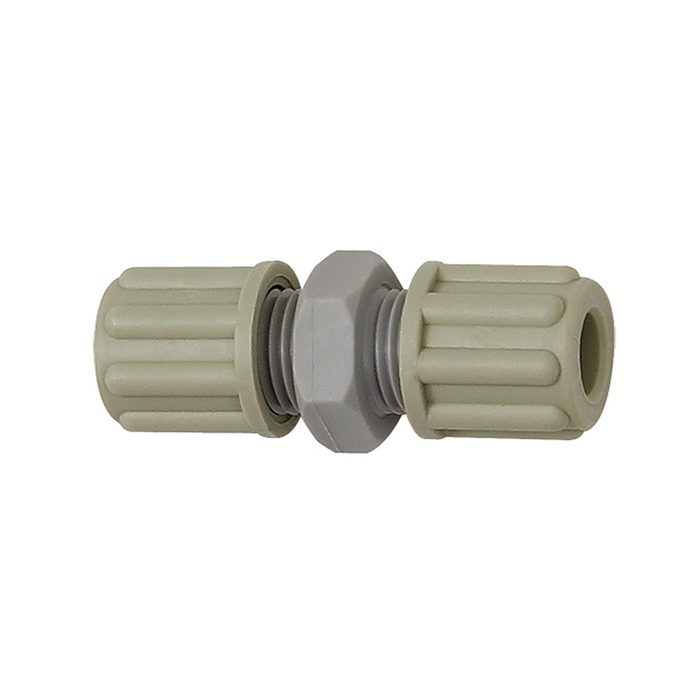

RIEGLER Straight hose connection, for hose 9/12 mm, AF 24, PA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight hose connection for pneumatic installation - type 140.04
The RIEGLER straight hose connector, for hose 9/12 mm, SW 24, PA connects compressed air hoses and pipes quickly and securely by simply screwing them in. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Screw fitting body | Polyamide (PA) |
| Clamping ring | Polypropylene (PP) |
| Knurled nut | Polypropylene (PP) |
| Max. operating pressure at 20 °C | 10 bar |
| Max. operating pressure at 60 °C | 1 bar |
| SW | 24 mm |
| for hose | 9/12 mm |
| L1 | 64 mm |
| Class name | FLEX |
